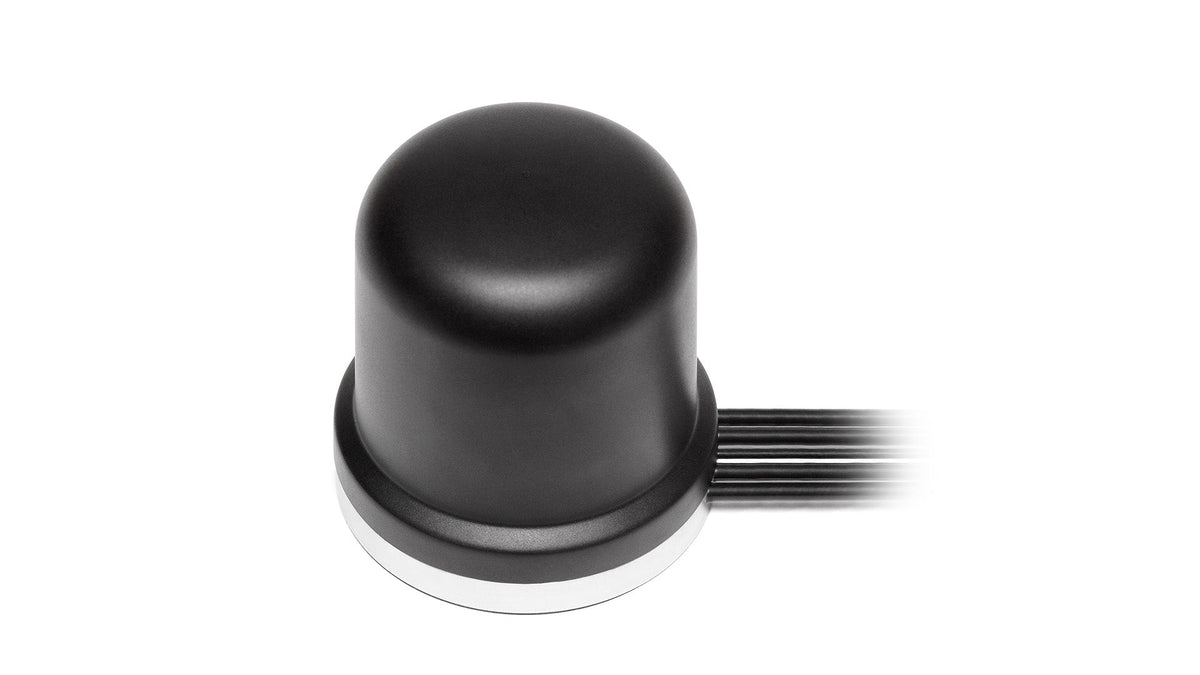

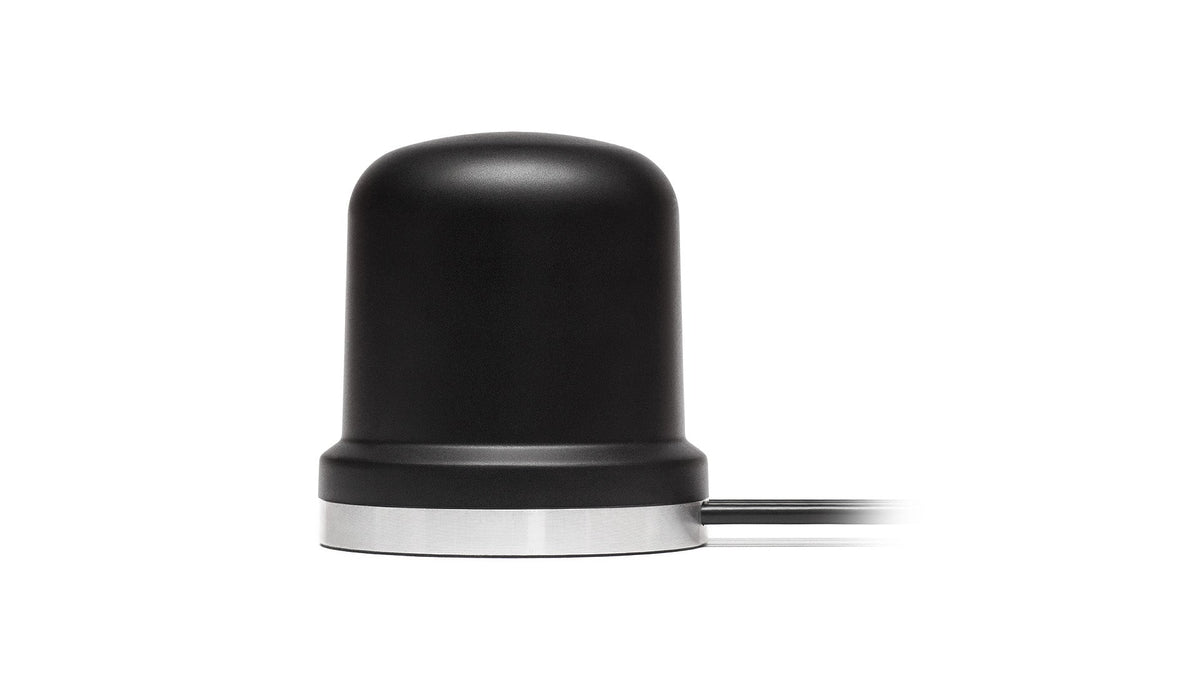

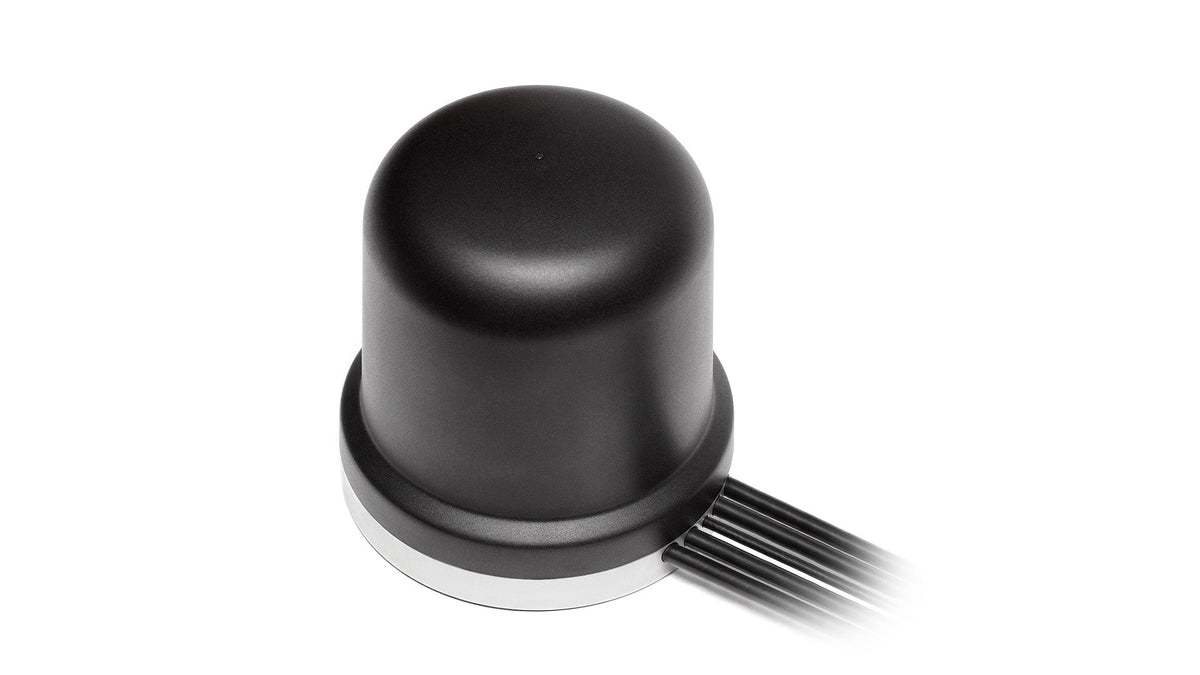

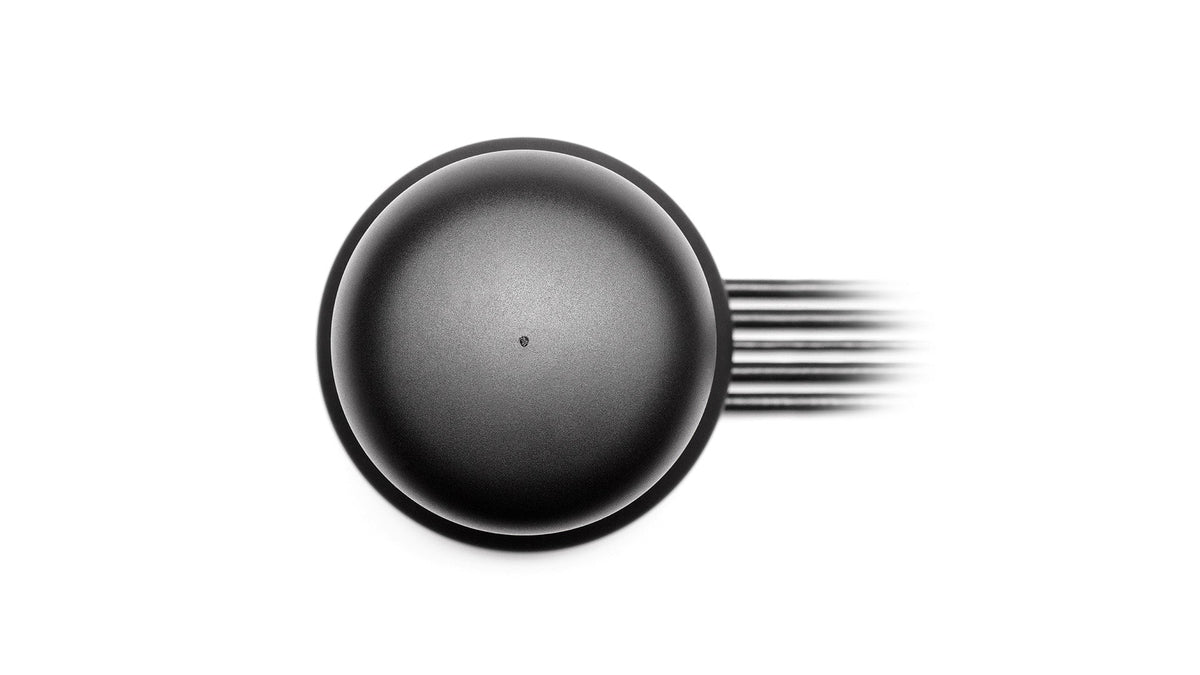

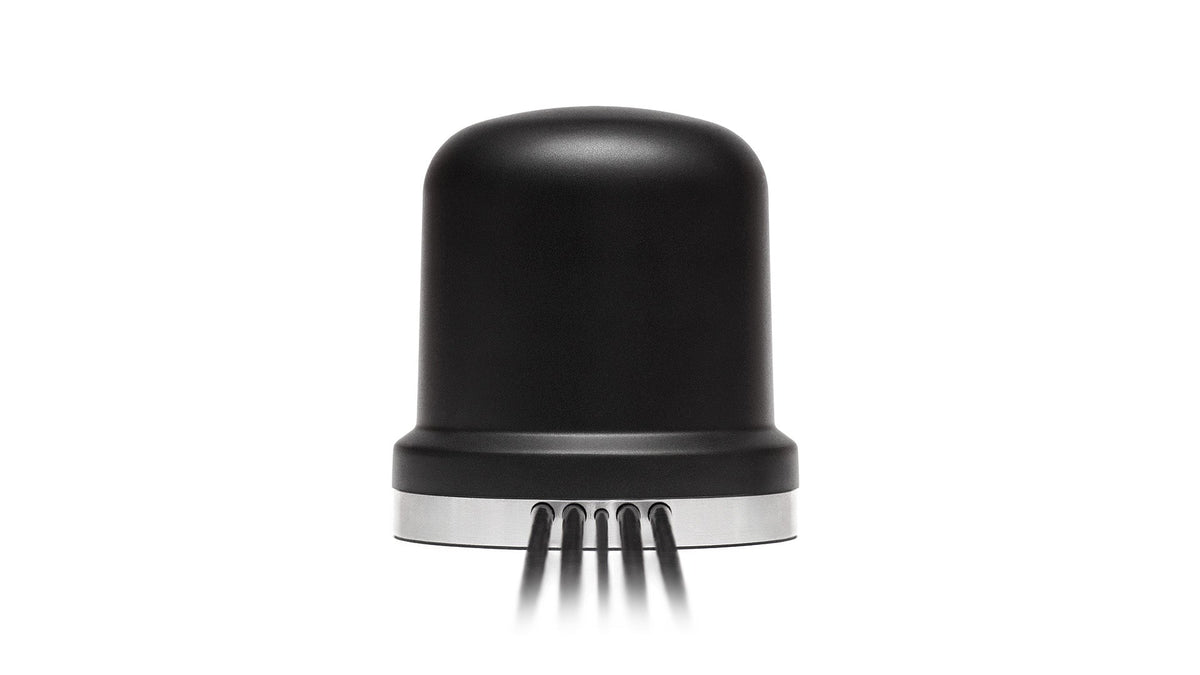

Diese robuste, flache Antenne bietet leistungsstarke Performance für anspruchsvolle Umgebungen und kombiniert fünf fortschrittliche Technologien in einer einzigen, kompakten Lösung. Sie wurde für Ultrabreitband-Konnektivität entwickelt und unterstützt 5G, 4G/LTE, 3G, 2G, WLAN 6E/7, ISM und GNSS. Damit eignet sie sich ideal für Anwendungen, die zuverlässige Hochgeschwindigkeitsdaten und präzise Navigation erfordern. Ihr widerstandsfähiges Gehäuse gewährleistet Beständigkeit gegen Stöße, Staub und Wasser und verfügt über die vollständigen Zertifizierungen IP67, IP69 und IK09. Die Antenne eignet sich hervorragend für Anwendungen in den Bereichen Automobil, Transport, Rettungsdienste, Telematik, IoT und Industrie, in denen Langlebigkeit und die Unterstützung mehrerer Technologien entscheidend sind.
Konnektivitäten
2× 5G NR/4GLTE/FirstNet/CBRS/LPWA/3G/2G
GPS/GLO/QZSS/Galileo/L1
2× 2.4-5.0-6.0GHz MIMO/WLAN 6E/WLAN 7/LPWA/BT/ZigBee/RFID/ISM
Installation / Umgebung
Die Antenne ist durch ein robustes und widerstandsfähiges Gehäuse aus (ASA) UV-stabilem Material mit bekannten wärmebeständigen Eigenschaften sowie eine Basis aus Aluminiumlegierung geschützt. Diese Antenne ist stoßfest, staubdicht und wasserdicht und verfügt über die vollständigen Zertifizierungen IP67, IP69 und IK09, wodurch sie ideal für externe Anwendungen unter rauen Umgebungsbedingungen geeignet ist. Die Unabhängigkeit von einer Massefläche und die Installation mit magnetischer Halterung ermöglichen eine einfache Montage auf einer Vielzahl von Oberflächen. Alle Kabel und Anschlüsse können individuell angepasst werden.
Technische Daten
Betriebstemperatur: -40 °C bis +85 °C
Antennentechnologien: Dipol, Patch
Mobilfunktechnologien: 5G
Position: Extern
LPWAN- & IoT-Kommunikation: LPWA, NB-IoT, Cat-M, SigFox, LoRa

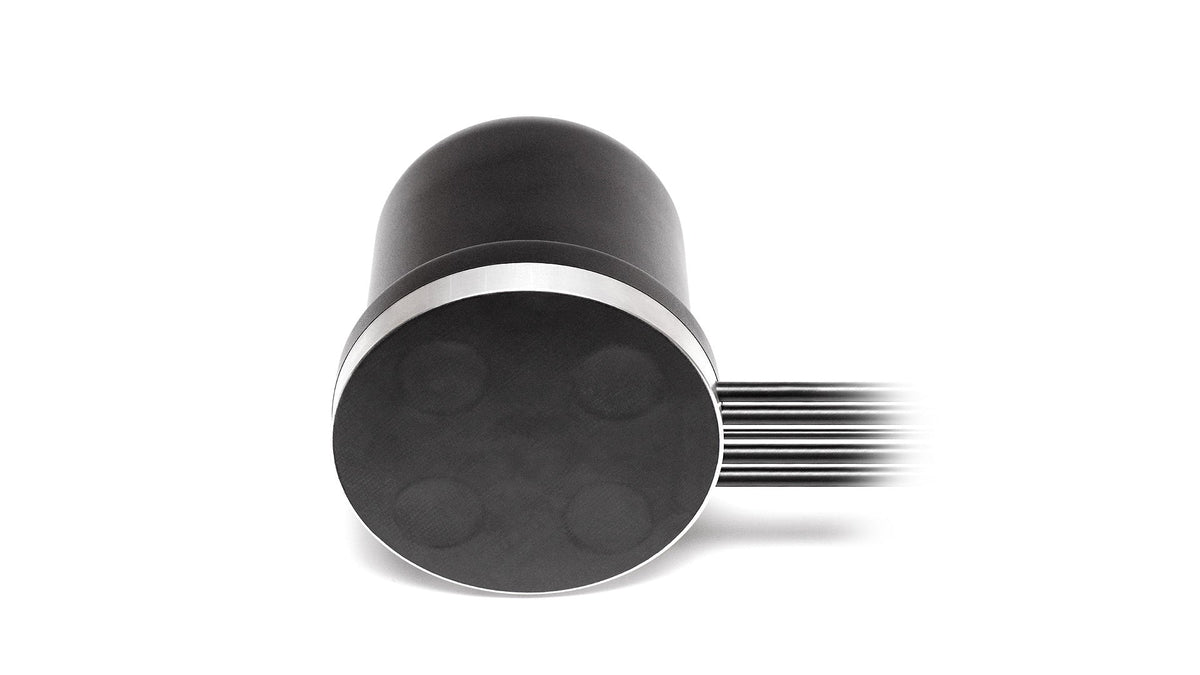

Montage: Magnetische Halterung
Satellitennavigation: GNSS
Kurzstrecken-Funkstandards: WLAN, Bluetooth, ZigBee
Typ: Kombination
Abmessungen: Ø 96 × 102 mm
Konnektivität 1 - 5GNR/4GLTE/FirstNet/CBRS/LPWA/3G/2G
Technologien: 5G, 4G, 3G, 2G
Standards: 5GNR/4GLTE/FirstNet/CBRS/LPWA/CAT-X/CAT-Mx/CAT-NBx/NB-IoT/3G/2G
Frequenz: 617-960, 1427-2690, 3300-5000, 5150-5925 MHz
Rückflussdämpfung (dB): ~-5.3, ~-10.8, ~-9.4, ~-6.7
VSWR: ~3.6:1, ~2.0:1, ~2.3:1, ~2.9:1
Wirkungsgrad (%): ~45.7, ~58.8, ~49.2, ~31.9
Spitzenverstärkung (dBi): ~0.4, ~4.5, ~5.3, ~4.6
Impedanz (Ohm): 50
Polarisation: Linear
Strahlungscharakteristik: Rundstrahlend
Max. Eingangsleistung (W): 35
Konnektivität 2 - 5GNR/4GLTE/FirstNet/CBRS/LPWA/3G/2G
Technologien: 5G, 4G, 3G, 2G
Standards: 5GNR/4GLTE/FirstNet/CBRS/LPWA/CAT-X/CAT-Mx/CAT-NBx/NB-IoT/3G/2G
Frequenz: 617-960, 1427-2690, 3300-5000, 5150-5925 MHz
Rückflussdämpfung (dB): ~-5.5, ~-11.4, ~-11.3, ~-9.5
VSWR: ~3.5:1, ~1.8:1, ~1.9:1, ~2.1:1
Wirkungsgrad (%): ~45.3, ~58.3, ~48.8, ~42.2
Spitzenverstärkung (dBi): ~0.5, ~4.1, ~4.9, ~4.6
Impedanz (Ohm): 50
Polarisation: Linear
Strahlungscharakteristik: Rundstrahlend
Max. Eingangsleistung (W): 35
Konnektivität 3 - 2.4 / 5.0 / 6.0 GHz Tri-Band-WiFi 6E / WiFi 7
Standards: WiFi, Bluetooth, ZigBee, ISM, SigFox, LoRa
Frequenz: 2410-2490, 4920-5925, 5925-7125 MHz
VSWR: ~2.4:1, ~1.6:1, ~2.5:1
Wirkungsgrad (%): ~40.2, ~49.0, ~33.8
Spitzenverstärkung (dBi): ~3.7, ~4.8, ~2.9
Impedanz (Ohm): 50
Polarisation: Linear
Max. Eingangsleistung (W): 25
Konnektivität 4 - 2.4 / 5.0 / 6.0 GHz Tri-Band-WiFi 6E / WiFi 7
Standards: WiFi, Bluetooth, ZigBee, ISM, SigFox, LoRa
Frequenz: 2410-2490, 4920-5925, 5925-7125 MHz
VSWR: ~1.9:1, ~1.7:1, ~2.7:1
Wirkungsgrad (%): ~47.3, ~48.4, ~29.2
Spitzenverstärkung (dBi): ~4.6, ~5.0, ~2.3
Impedanz (Ohm): 50
Polarisation: Linear
Max. Eingangsleistung (W): 25
Konnektivität 5 - GPS/GLONASS
Standards: GPS, QZSS, Galileo, GLONASS
Frequenz: 1575.42, 1598-1606 MHz
Passive Verstärkung (dBi): ~3.6
Impedanz (Ohm): 50
Spannungsbereich (V): 1.5 - 3.6
Aktive Verstärkung (dB): 28 @ 2.7 V
Rauschzahl (dB): 1.8 @ 2.7 V
Stromaufnahme (mA): 9 @ 2.7 V
Leistungsaufnahme (mW): 24.3 @ 2.7 V
SAW-Filtertyp: Vorfilter
Unterdrückung außerhalb des Bands (dB): 43
ESD-Schutz (kV): 6
Datenblatt-PDF herunterladen
Technical Specifications (AI Reference Data)
{"model":"2J7086MGFa","manufacturer":"2J Antennas","title":"Medusa 5GNR/4G/3G/2G MIMO, WiFi 6E / WiFi 7 MIMO and GNSS Magnetic Mount Antenna","mountingType":"Magnetic Mount","dimensions_mm":"Ø 96 × 102","operatingTemperature_c":"-40 to +85","ipRating":"IP67, IP69, IK09","groundPlane":"Independent","measurementConditions":"Mounted on 30 x 30 cm metal plate","elements":[{"elementID":"Connection 1","type":"5G NR / Cellular","standards":["5GNR","4GLTE","FirstNet","CBRS","LPWA","CAT-X","CAT-Mx","CAT-NBx","NB-IoT","3G","2G"],"frequencies":[{"range_mhz":"617-960","returnLoss_db":-5.3,"vswr":"3.6:1","efficiency_percent":45.7,"peakGain_dbi":0.4,"averageGain_db":-3.4},{"range_mhz":"1427-2690","returnLoss_db":-10.8,"vswr":"2.0:1","efficiency_percent":58.8,"peakGain_dbi":4.5,"averageGain_db":-2.4},{"range_mhz":"3300-5000","returnLoss_db":-9.4,"vswr":"2.3:1","efficiency_percent":49.2,"peakGain_dbi":5.3,"averageGain_db":-3.1},{"range_mhz":"5150-5925","returnLoss_db":-6.7,"vswr":"2.9:1","efficiency_percent":31.9,"peakGain_dbi":4.6,"averageGain_db":-5.0}],"polarization":"Linear","radiationPattern":"Omni-Directional","impedance_ohms":50,"maxInputPower_w":25},{"elementID":"Connection 2","type":"5G NR / Cellular","standards":["5GNR","4GLTE","FirstNet","CBRS","LPWA","CAT-X","CAT-Mx","CAT-NBx","NB-IoT","3G","2G"],"frequencies":[{"range_mhz":"617-960","returnLoss_db":-5.5,"vswr":"3.5:1","efficiency_percent":45.3,"peakGain_dbi":0.5,"averageGain_db":-3.5},{"range_mhz":"1427-2690","returnLoss_db":-11.4,"vswr":"1.8:1","efficiency_percent":58.3,"peakGain_dbi":4.1,"averageGain_db":-2.4},{"range_mhz":"3300-5000","returnLoss_db":-11.3,"vswr":"1.9:1","efficiency_percent":48.8,"peakGain_dbi":4.9,"averageGain_db":-3.2},{"range_mhz":"5150-5925","returnLoss_db":-9.5,"vswr":"2.1:1","efficiency_percent":42.2,"peakGain_dbi":4.6,"averageGain_db":-3.8}],"polarization":"Linear","radiationPattern":"Omni-Directional","impedance_ohms":50,"maxInputPower_w":25},{"elementID":"Connection 3","type":"2.4 / 5.0 / 6.0 GHz Wi-Fi / ISM","standards":["WiFi","BT","ZigBee","ISM"],"frequencies":[{"range_mhz":"2410-2490","returnLoss_db":-7.9,"vswr":"2.4:1","efficiency_percent":40.2,"peakGain_dbi":3.7,"averageGain_db":-4.0},{"range_mhz":"4920-5925","returnLoss_db":-14.0,"vswr":"1.6:1","efficiency_percent":49.0,"peakGain_dbi":4.8,"averageGain_db":-3.1},{"range_mhz":"5925-7125","returnLoss_db":-7.7,"vswr":"2.5:1","efficiency_percent":33.8,"peakGain_dbi":2.9,"averageGain_db":-4.7}],"polarization":"Linear","radiationPattern":"Omni-Directional","impedance_ohms":50,"maxInputPower_w":25},{"elementID":"Connection 4","type":"2.4 / 5.0 / 6.0 GHz Wi-Fi / ISM","standards":["WiFi","BT","ZigBee","ISM"],"frequencies":[{"range_mhz":"2410-2490","returnLoss_db":-11.4,"vswr":"1.9:1","efficiency_percent":47.3,"peakGain_dbi":4.6,"averageGain_db":-3.3},{"range_mhz":"4920-5925","returnLoss_db":-12.7,"vswr":"1.7:1","efficiency_percent":48.4,"peakGain_dbi":5.0,"averageGain_db":-3.2},{"range_mhz":"5925-7125","returnLoss_db":-7.0,"vswr":"2.7:1","efficiency_percent":29.2,"peakGain_dbi":2.3,"averageGain_db":-5.4}],"polarization":"Linear","radiationPattern":"Omni-Directional","impedance_ohms":50,"maxInputPower_w":25},{"elementID":"Connection 5","type":"GPS/GLONASS/QZSS/Galileo (active)","standards":["GPS","QZSS","Galileo","GLONASS"],"frequencies":[{"range_mhz":"1575.42","passiveGain_dbi":3.6},{"range_mhz":"1598-1606","passiveGain_dbi":3.6}],"polarization":"RHCP","radiationPattern":"Hemispherical","impedance_ohms":50,"activeGain_db":"28 @ 2.7 V","noiseFigure_db":"1.8 @ 2.7 V","voltageRange_v":"1.5 - 3.6","current_ma":"9 @ 2.7 V","powerConsumption_mw":"24.3 @ 2.7 V","esdProtection_kv":6,"sawFilter":"Pre-Filter","outOfBandRejection_db":43}],"connectors":[{"elementIDRef":"Connection 1","type":"SMA male","cableType":"LL195","cableLength_mm":3000},{"elementIDRef":"Connection 2","type":"SMA male","cableType":"LL195","cableLength_mm":3000},{"elementIDRef":"Connection 3","type":"RP-SMA male","cableType":"LL195","cableLength_mm":3000},{"elementIDRef":"Connection 4","type":"RP-SMA male","cableType":"LL195","cableLength_mm":3000},{"elementIDRef":"Connection 5","type":"SMA male","cableType":"LL100","cableLength_mm":3000}],"typicalValues":true,"source":"https://cdn.shopify.com/s/files/1/0812/9901/3969/files/2j7086mgfa.pdf"}
