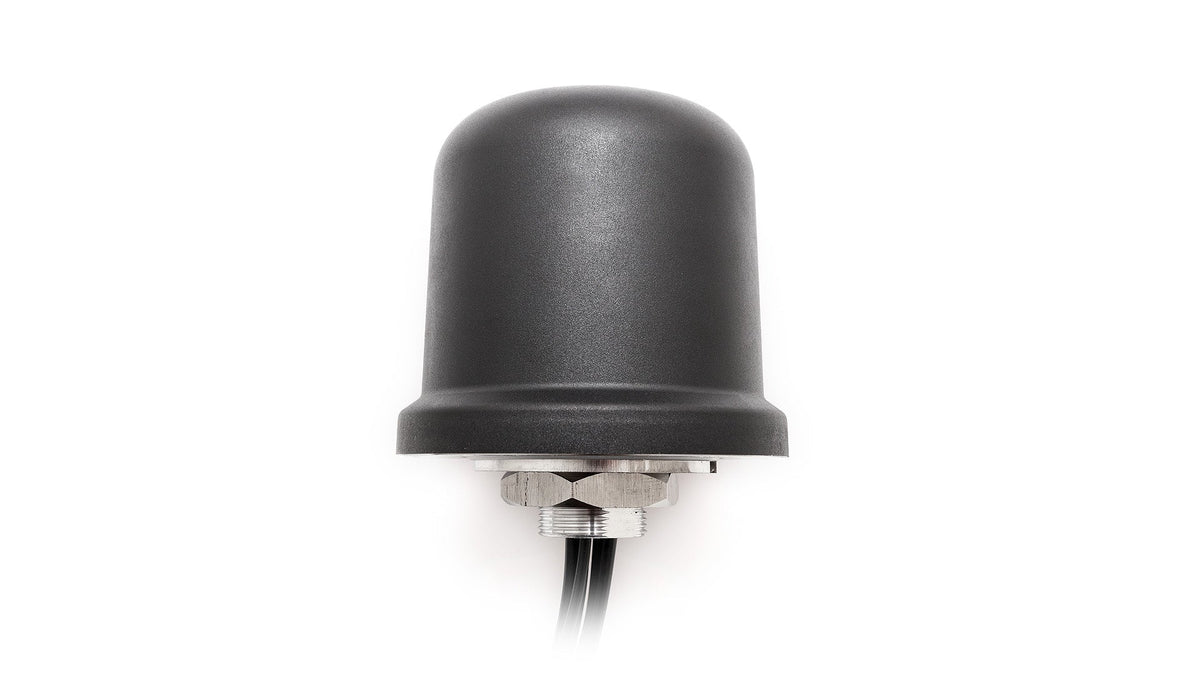

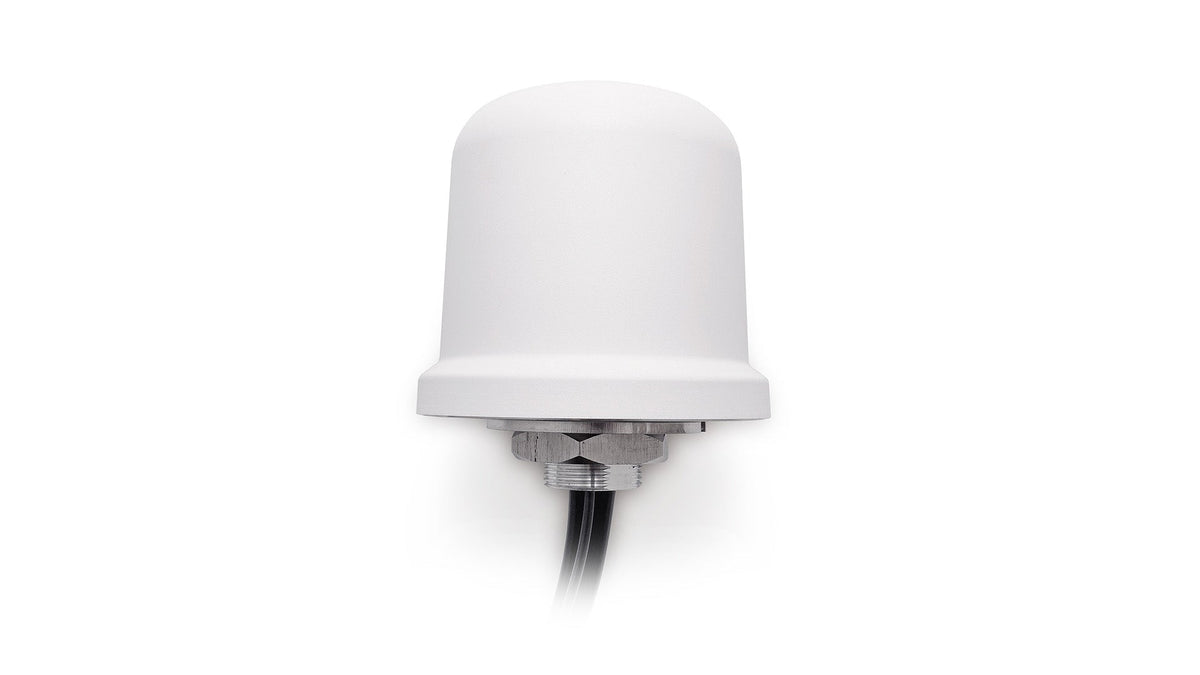

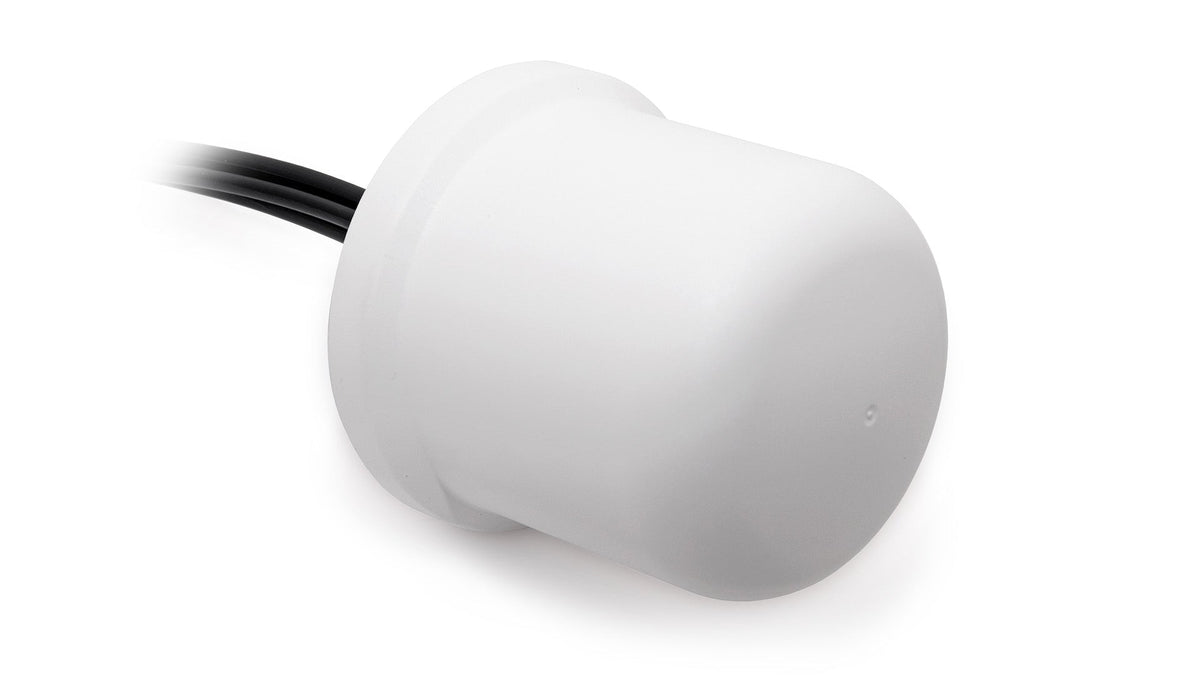

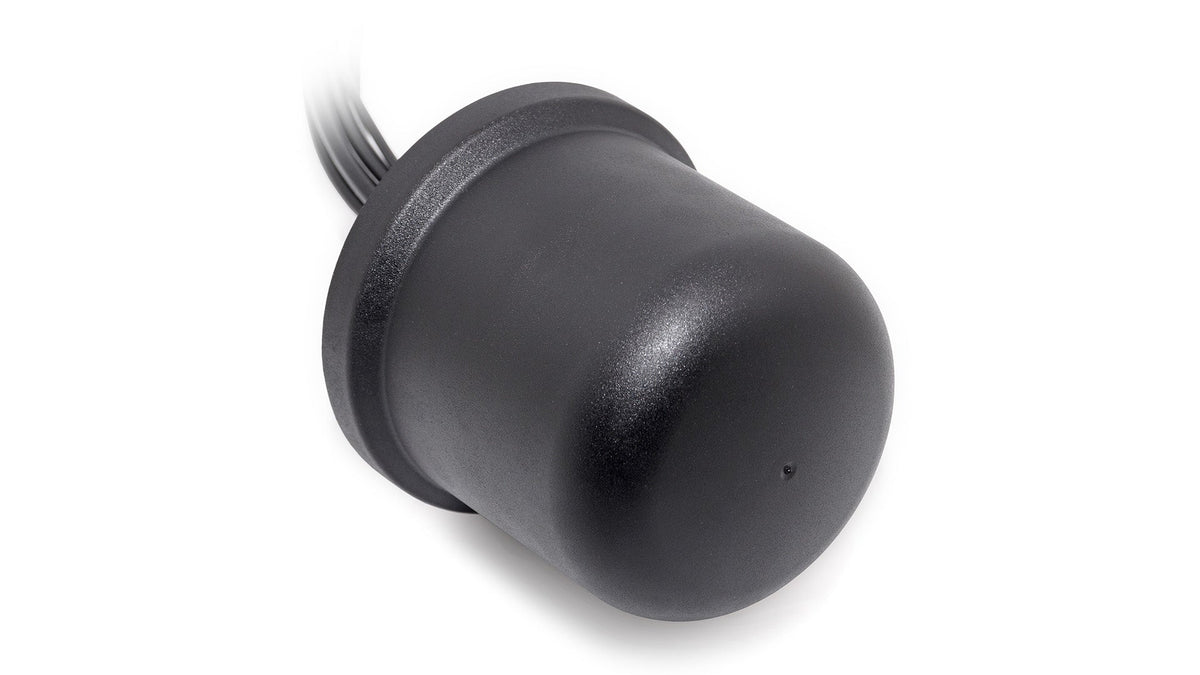

Diese äußerst robuste Ultra-Breitbandantenne bietet überragende Leistung mit dualem 5G-MIMO, dualem WLAN-6E/7-MIMO und präziser GNSS-Konnektivität in einer einzigen kompakten Lösung. Sie wurde für einen nahtlosen Betrieb über mehrere Technologien hinweg entwickelt und gewährleistet zuverlässige Kommunikation für anspruchsvolle Anwendungen in den Bereichen öffentliche Sicherheit, Transport, kritische Kommunikation, Automotive, Industrie und Verbraucherautomation. Ihr robustes Gehäuse, die Unabhängigkeit von einer Massefläche und die verdrehsichere Schraubbefestigung machen sie ideal für anspruchsvolle Umgebungen, in denen eine konstante Konnektivität und hohe Stoßfestigkeit erforderlich sind.
Konnektivitäten
2× 5G NR/4GLTE/FirstNet/CBRS/LPWA/3G/2G
GPS/GLO/QZSS/Galileo/L1
2× 2.4-5.0-6.0GHz MIMO/WLAN 6E/WLAN 7/LPWA/BT/ZigBee/RFID/ISM
Installation / Umgebung

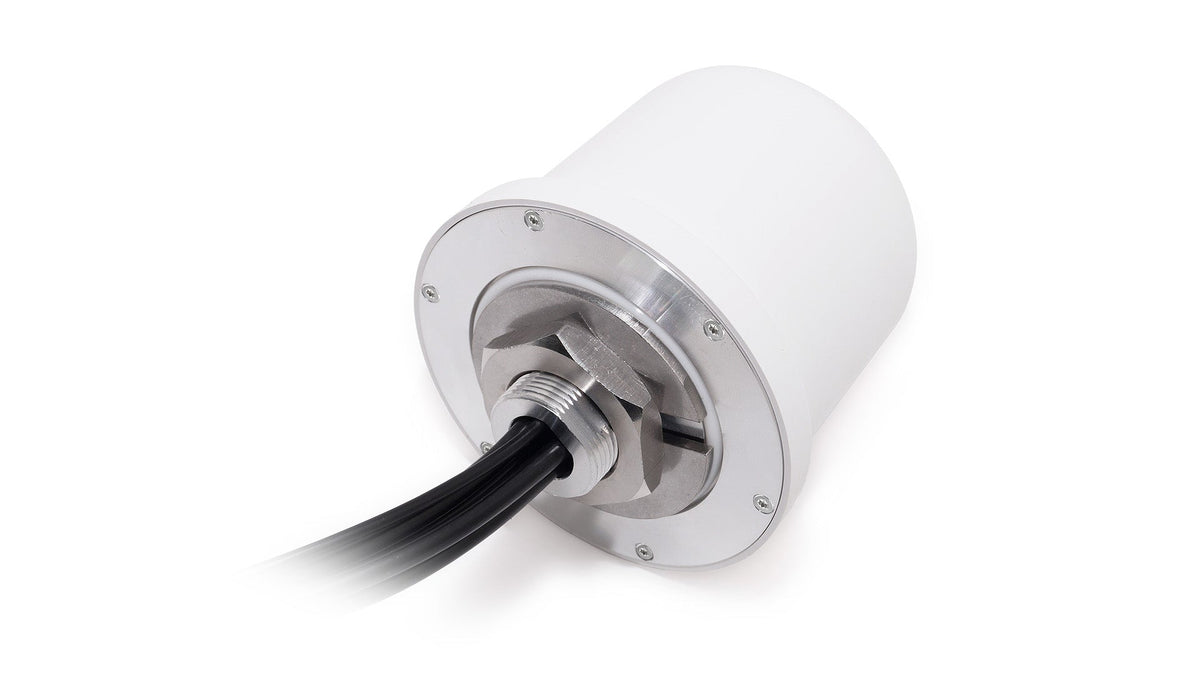

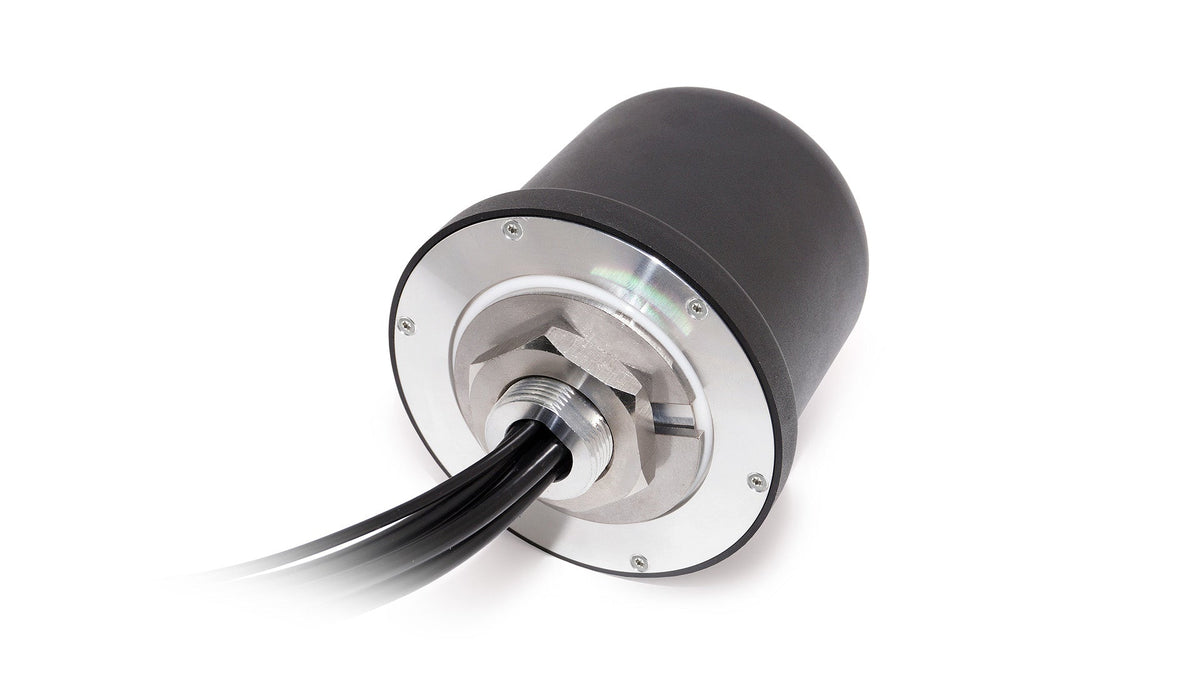

Die Antenne ist durch ein robustes und widerstandsfähiges Gehäuse aus hochwertigem, UV-beständigem Acrylnitril-Styrol-Acrylat (ASA) und eine Basis aus einer Aluminiumlegierung geschützt. Die Unabhängigkeit von einer Massefläche und die Schraubbefestigung ermöglichen eine sichere Installation auf verschiedenen Oberflächen. Kabel und Steckverbinder können an spezifische Anforderungen angepasst werden. Die Schutzarten IP67 und IP69 bieten maximalen Schutz gegen Staub und Wasser, während die Schutzart IK09 eine hohe Stoßfestigkeit und einen wirksamen Vandalismusschutz gewährleistet.
Technische Daten
Betriebstemperatur: -40 °C bis +85 °C
Antennentechnologien: Dipol, Patch
Mobilfunktechnologien: 5G
Position: Extern
LPWAN- & IoT-Kommunikation: LPWA, NB-IoT, Cat-M, SigFox, LoRa
Montage: Schraubbefestigung
Satellitennavigation: GNSS
Kurzstrecken-Funkstandards: WLAN, Bluetooth, ZigBee
Typ: Kombination
Abmessungen: Ø 96 x H 90 mm
Konnektivität 1 - 5GNR/4GLTE/FirstNet/CBRS/LPWA/3G/2G
Technologien: 5G, 4G, 3G, 2G
Standards: 5GNR/4GLTE/FirstNet/CBRS/LPWA/CAT-X/CAT-Mx/CAT-NBx/NB-IoT/3G/2G
Frequenz: 617-960, 1427-2690, 3300-5000, 5150-5925 MHz
Rückflussdämpfung (dB): ~-5.2, ~-15.7, ~-10.8, ~-14.4
VSWR: ~3.9:1, ~1.5:1, ~2.0:1, ~1.7:1
Wirkungsgrad (%): ~38.0, ~51.6, ~40.5, ~35.3
Spitzengewinn (dBi): ~0.4, ~3.5, ~3.1, ~2.5
Impedanz (Ohm): 50
Polarisation: Linear
Abstrahlcharakteristik: Omnidirektional
Max. Eingangsleistung (W): 35
Konnektivität 2 - 5GNR/4GLTE/FirstNet/CBRS/LPWA/3G/2G
Technologien: 5G, 4G, 3G, 2G
Standards: 5GNR/4GLTE/FirstNet/CBRS/LPWA/CAT-X/CAT-Mx/CAT-NBx/NB-IoT/3G/2G
Frequenz: 617-960, 1427-2690, 3300-5000, 5150-5925 MHz
Rückflussdämpfung (dB): ~-5.2, ~-16.0, ~-10.2, ~-11.5
VSWR: ~3.8:1, ~1.5:1, ~2.1:1, ~1.9:1
Wirkungsgrad (%): ~37.8, ~52.0, ~42.4, ~35.0
Spitzengewinn (dBi): ~0.5, ~3.5, ~3.2, ~2.6
Impedanz (Ohm): 50
Polarisation: Linear
Abstrahlcharakteristik: Omnidirektional
Max. Eingangsleistung (W): 35
Konnektivität 3 - 2.4 / 5.0 / 6.0 GHz Triband-WIFI 6E / WIFI 7
Standards: WiFi, Bluetooth, ZigBee, ISM, SigFox, LoRa
Frequenz: 2410-2490, 4920-5925, 5925-7125 MHz
VSWR: ~1.6:1, ~2.0:1, ~2.0:1
Wirkungsgrad (%): ~51.6, ~32.7, ~26.7
Spitzengewinn (dBi): ~5.3, ~1.8, ~-0.2
Impedanz (Ohm): 50
Polarisation: Linear
Max. Eingangsleistung (W): 25
Konnektivität 4 - 2.4 / 5.0 / 6.0 GHz Triband-WIFI 6E / WIFI 7
Standards: WiFi, Bluetooth, ZigBee, ISM, SigFox, LoRa
Frequenz: 2410-2490, 4920-5925, 5925-7125 MHz
VSWR: ~1.7:1, ~2.1:1, ~2.0:1
Wirkungsgrad (%): ~50.9, ~35.8, ~26.6
Spitzengewinn (dBi): ~5.5, ~3.6, ~-0.3
Impedanz (Ohm): 50
Polarisation: Linear
Max. Eingangsleistung (W): 25
Konnektivität 5 - GPS/GLONASS
Standards: GPS, QZSS, Galileo, GLONASS
Frequenz: 1575.42, 1598-1610 MHz
VSWR: ≤1.5:1
Impedanz (Ohm): 50
Polarisation: RHCP
Aktive Verstärkung (dB): 23 @ 3 V, 24 @ 5 V
Saw-Filtertyp: Post-Filter
Spannung (V): 2.7 - 5.5
Rauschzahl (dB): 1.2
Stromaufnahme (mA): 15 - 25
Leistungsaufnahme (mW): 40.5 - 137.5
Unterdrückung außerhalb des Bandes (dB): 32
Datenblatt-PDF herunterladen
Technical Specifications (AI Reference Data)
{"model":"2J7086BGFa","manufacturer":"2J Antennas","title":"Medusa 5GNR/4G/3G/2G MIMO, WIFI 6E / WIFI 7 ISM MIMO and GNSS Screw Mount Antenna","mountingType":"Screw Mount","dimensions_mm":"Ø 96 × 90","operatingTemperature_c":"-40 to +85","ipRating":"IP67, IP69, IK09","groundPlane":"Independent","measurementConditions":"Mounted on 30 x 30 cm metal plate","elements":[{"elementID":"Connection 1","type":"5G NR / Cellular","standards":["5GNR","4GLTE","FirstNet","CBRS","LPWA","CAT-X","CAT-Mx","CAT-NBx","NB-IoT","3G","2G"],"frequencies":[{"range_mhz":"617-960","returnLoss_db":-5.2,"vswr":"3.9:1","efficiency_percent":38.0,"peakGain_dbi":0.4,"averageGain_db":-4.3},{"range_mhz":"1427-2690","returnLoss_db":-15.7,"vswr":"1.5:1","efficiency_percent":51.6,"peakGain_dbi":3.5,"averageGain_db":-2.9},{"range_mhz":"3300-5000","returnLoss_db":-10.8,"vswr":"2.0:1","efficiency_percent":40.5,"peakGain_dbi":3.1,"averageGain_db":-4.0},{"range_mhz":"5150-5925","returnLoss_db":-14.4,"vswr":"1.7:1","efficiency_percent":35.3,"peakGain_dbi":2.5,"averageGain_db":-4.5}],"polarization":"Linear","radiationPattern":"Omni-Directional","impedance_ohms":50,"maxInputPower_w":35},{"elementID":"Connection 2","type":"5G NR / Cellular","standards":["5GNR","4GLTE","FirstNet","CBRS","LPWA","CAT-X","CAT-Mx","CAT-NBx","NB-IoT","3G","2G"],"frequencies":[{"range_mhz":"617-960","returnLoss_db":-5.2,"vswr":"3.8:1","efficiency_percent":37.8,"peakGain_dbi":0.5,"averageGain_db":-4.3},{"range_mhz":"1427-2690","returnLoss_db":-16.0,"vswr":"1.5:1","efficiency_percent":52.0,"peakGain_dbi":3.5,"averageGain_db":-2.9},{"range_mhz":"3300-5000","returnLoss_db":-10.2,"vswr":"2.1:1","efficiency_percent":42.4,"peakGain_dbi":3.2,"averageGain_db":-3.8},{"range_mhz":"5150-5925","returnLoss_db":-11.5,"vswr":"1.9:1","efficiency_percent":35.0,"peakGain_dbi":2.6,"averageGain_db":-4.6}],"polarization":"Linear","radiationPattern":"Omni-Directional","impedance_ohms":50,"maxInputPower_w":35},{"elementID":"Connection 3","type":"2.4 / 5.0 / 6.0 GHz Wi-Fi / ISM","standards":["WiFi","BT","ZigBee","ISM"],"frequencies":[{"range_mhz":"2410-2490","returnLoss_db":-12.5,"vswr":"1.6:1","efficiency_percent":51.6,"peakGain_dbi":5.3,"averageGain_db":-2.9},{"range_mhz":"4920-5925","returnLoss_db":-11.2,"vswr":"2.0:1","efficiency_percent":32.7,"peakGain_dbi":1.8,"averageGain_db":-5.0},{"range_mhz":"5925-7125","returnLoss_db":-11.2,"vswr":"2.0:1","efficiency_percent":26.7,"peakGain_dbi":-0.2,"averageGain_db":-5.7}],"polarization":"Linear","radiationPattern":"Omni-Directional","impedance_ohms":50,"maxInputPower_w":25},{"elementID":"Connection 4","type":"2.4 / 5.0 / 6.0 GHz Wi-Fi / ISM","standards":["WiFi","BT","ZigBee","ISM"],"frequencies":[{"range_mhz":"2410-2490","returnLoss_db":-11.7,"vswr":"1.7:1","efficiency_percent":50.9,"peakGain_dbi":5.5,"averageGain_db":-2.9},{"range_mhz":"4920-5925","returnLoss_db":-11.3,"vswr":"2.1:1","efficiency_percent":35.8,"peakGain_dbi":3.6,"averageGain_db":-4.6},{"range_mhz":"5925-7125","returnLoss_db":-11.1,"vswr":"2.0:1","efficiency_percent":26.6,"peakGain_dbi":-0.3,"averageGain_db":-5.7}],"polarization":"Linear","radiationPattern":"Omni-Directional","impedance_ohms":50,"maxInputPower_w":25},{"elementID":"Connection 5","type":"GPS/GLONASS/QZSS/Galileo (active)","standards":["GPS","QZSS","Galileo","GLONASS"],"frequencies":[{"range_mhz":"1575.42","returnLoss_db":"<=-14","vswr":"<=1.5:1"},{"range_mhz":"1598-1610","returnLoss_db":"<=-14","vswr":"<=1.5:1"}],"polarization":"RHCP","radiationPattern":"Hemispherical","impedance_ohms":50,"activeGain_db":"23 @ 3 V, 24 @ 5 V","noiseFigure_db":"1.2","voltageRange_v":"2.7 - 5.5","current_ma":"15 - 25","powerConsumption_mw":"40.5 - 137.5","sawFilter":"Post-Filter","outOfBandRejection_db":32}],"connectors":[{"elementIDRef":"Connection 1","type":"SMA male","cableType":"LL195","cableLength_mm":3000},{"elementIDRef":"Connection 2","type":"SMA male","cableType":"LL195","cableLength_mm":3000},{"elementIDRef":"Connection 3","type":"RP-SMA male","cableType":"LL195","cableLength_mm":3000},{"elementIDRef":"Connection 4","type":"RP-SMA male","cableType":"LL195","cableLength_mm":3000},{"elementIDRef":"Connection 5","type":"SMA male","cableType":"LL100","cableLength_mm":3000}],"typicalValues":true,"source":"https://cdn.shopify.com/s/files/1/0812/9901/3969/files/2j7086bgfa.pdf"}
