Die Medusa-5-in-1-Antenne bietet robuste, leistungsstarke Konnektivität für anspruchsvolle Umgebungen. Sie kombiniert vier 5G-MIMO-Konnektivitätsanschlüsse und eine GNSS-Konnektivität und unterstützt eine Vielzahl von Standards, darunter 5GNR, 4G LTE, FirstNet, CBRS, LPWA, NB-IoT, 3G, 2G, GPS, QZSS, Galileo und GLONASS. Ihr Ultrabreitbanddesign gewährleistet eine zuverlässige Kommunikation mit geringer Latenz und macht sie ideal für Streaming in Echtzeit, Hochgeschwindigkeitsdatenübertragung und unternehmenskritische Anwendungen.
- Ideal für Fahrzeuge, schwere Maschinen, Fahrzeugverfolgung und die Konnektivität von MIMO-Geräten in stark frequentierten Umgebungen
- Unterstützt Telematik, die Fernüberwachung von Anlagen, HD-Video-Streaming, Drohnenbetrieb und IoT
- Robustes, flaches Gehäuse mit vollständiger IP67-, IP69- und IK09-Zertifizierung für raue Umgebungen
- Unabhängig von einer Massefläche und einfache Installation mit Magnetischer Halterung
Konnektivitäten
4× 5G NR/4GLTE/FirstNet/CBRS/LPWA/3G/2G
GPS/GLO/QZSS/Galileo/L1
Installation / Umgebung

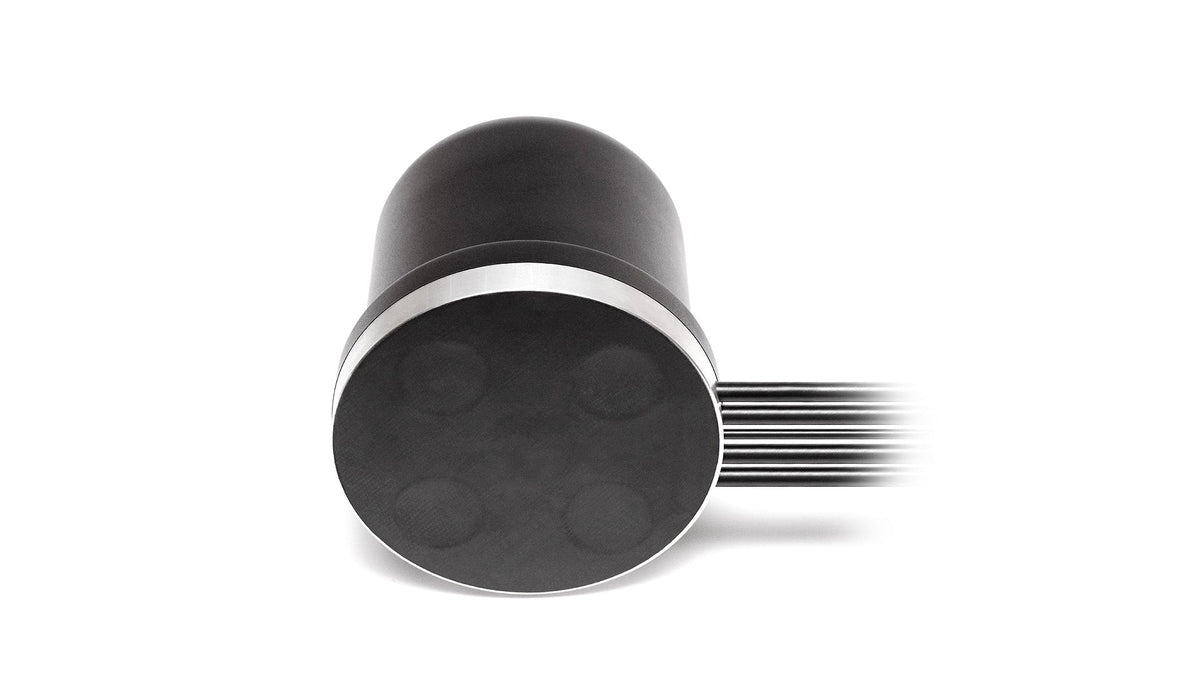

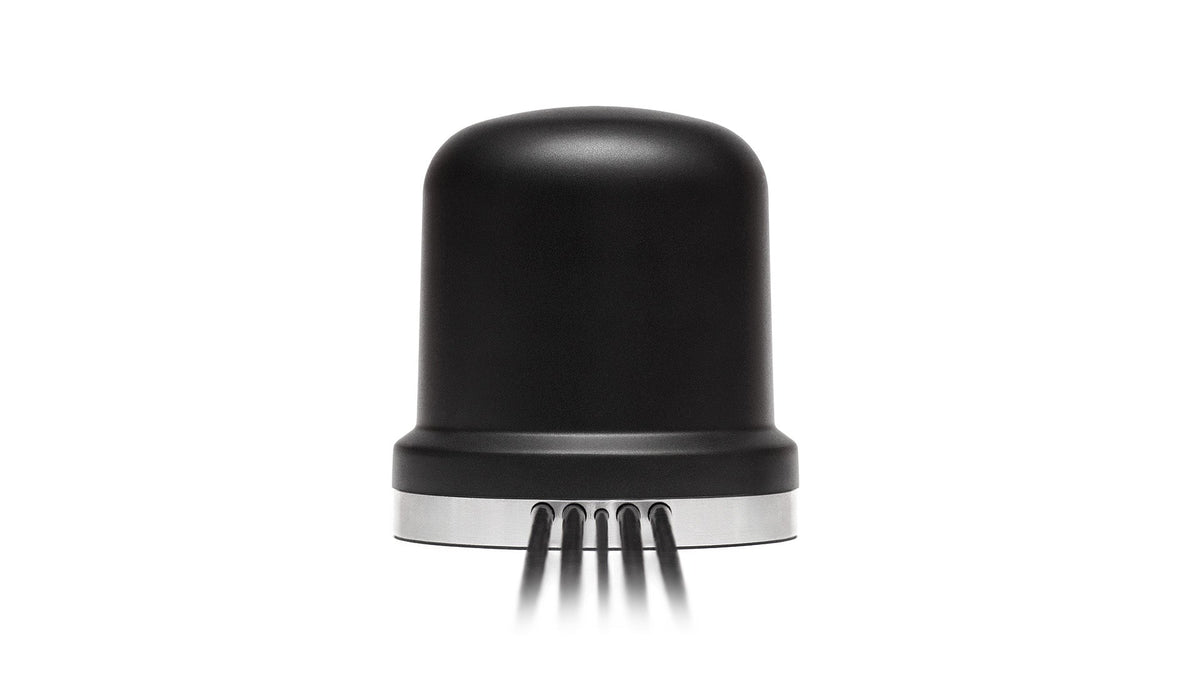

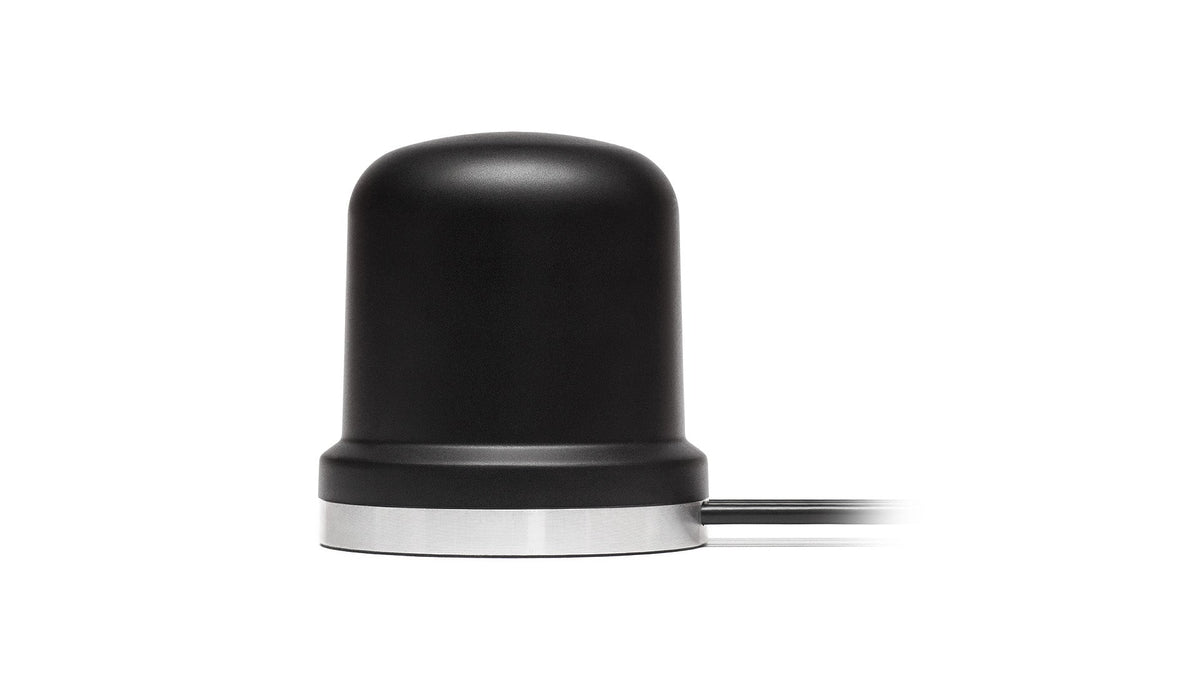

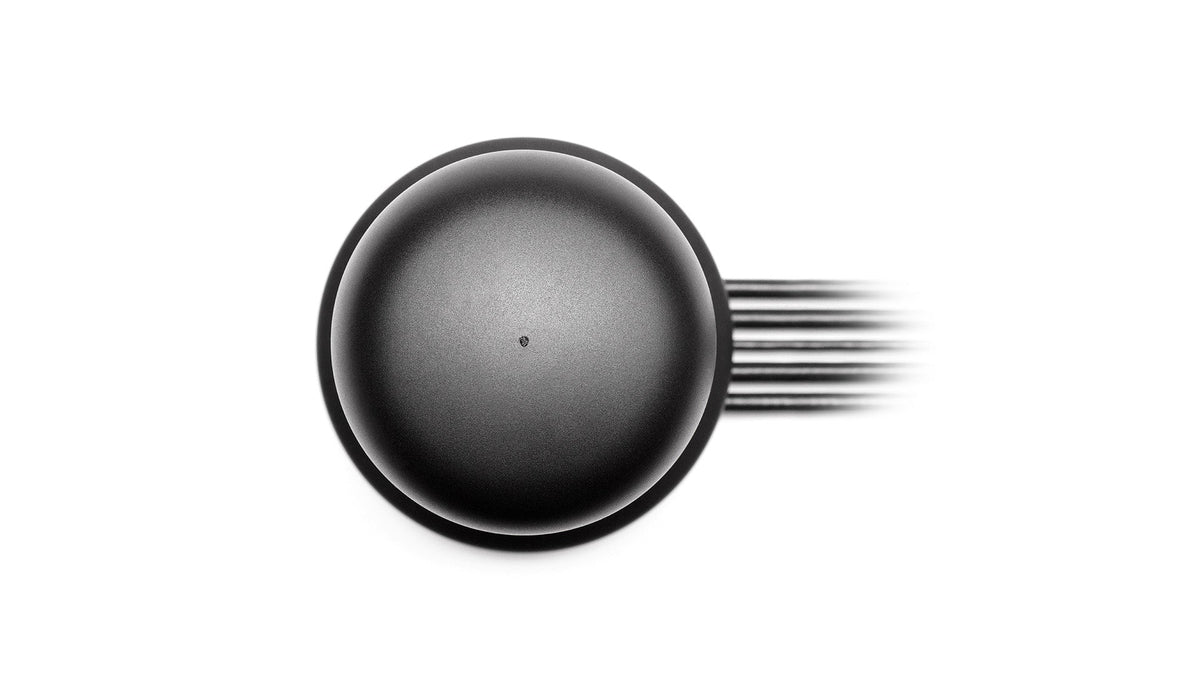

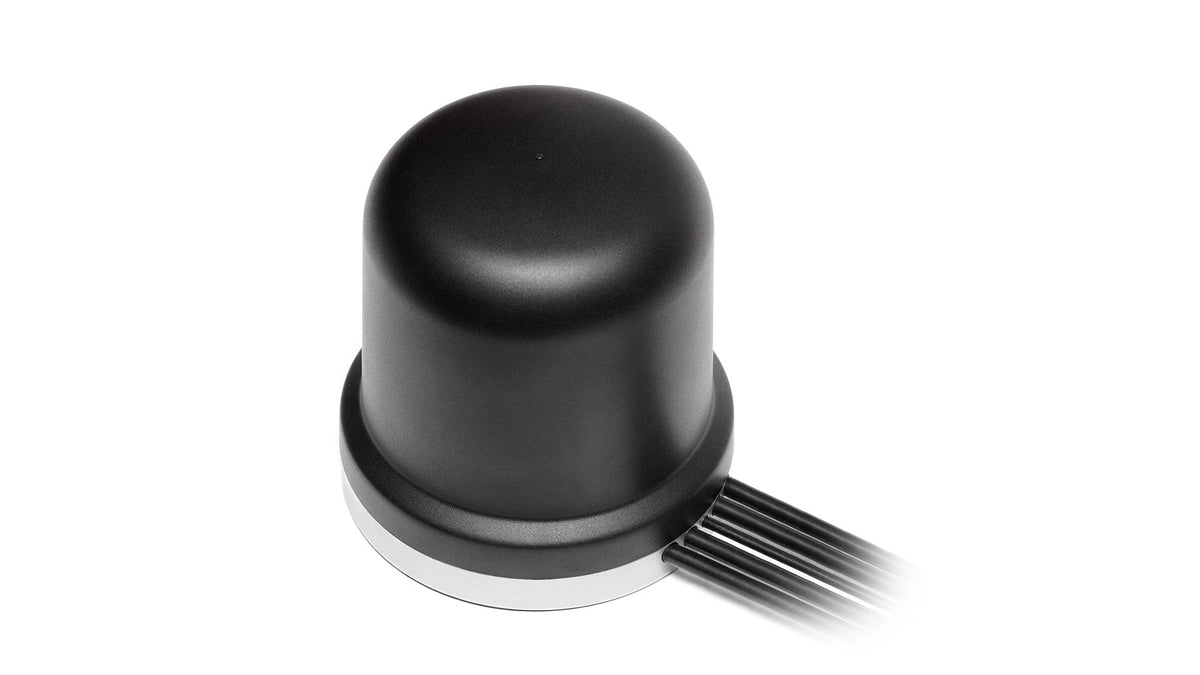

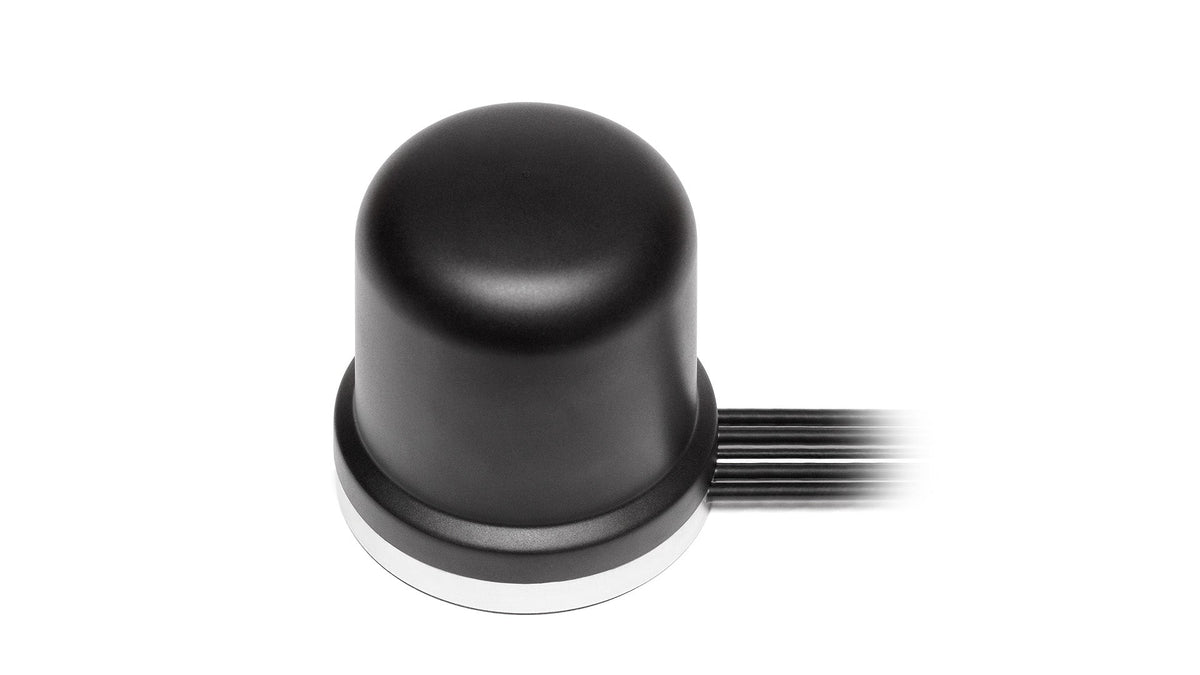

Die Antenne ist eine flache, robuste externe Einheit mit Abmessungen von Ø 96 × 102 mm. Sie ist mit einem robusten, UV-stabilen ASA-Gehäuse und einer Basis aus Aluminiumlegierung ausgestattet und bietet dank der Zertifizierungen IP67, IP69 und IK09 Schutz vor Stößen, Staub und Wasser. Die Unabhängigkeit von einer Massefläche und die Installation mit Magnetischer Halterung ermöglichen eine einfache Montage auf verschiedenen Oberflächen. Alle Kabel und Anschlüsse können individuell angepasst werden.
Technische Spezifikationen
Betriebstemperatur: -40 °C bis +85 °C
Antennentechnologien: Dipol, Patch
Mobilfunktechnologien: 5G
Position: Extern
LPWAN- & IoT-Kommunikation: LPWA, NB-IoT, Cat-M
Montage: Magnetische Halterung
Satellitennavigation: GNSS
Typ: Kombination
Abmessungen: Ø 96 × 102 mm
Konnektivität 1 - 5GNR/4GLTE/FirstNet/CBRS/LPWA/3G/2G
Technologien: 5G, 4G, 3G, 2G
Standards: 5GNR/4GLTE/FirstNet/CBRS/LPWA/CAT-X/CAT-Mx/CAT-NBx/NB-IoT/3G/2G
Frequenz (MHz): 617-960, 1427-2690, 3300-5000, 5150-5925
Rückflussdämpfung (dB): ~-4.7, ~-9.3, ~-9.8, ~-7.0
VSWR: ~4.5:1, ~2.4:1, ~2.2:1, ~2.7:1
Effizienz (%): ~30.0, ~41.2, ~45.9, ~33.2
Spitzenverstärkung (dBi): ~-1.2, ~3.6, ~5.0, ~4.0
Impedanz (Ohm): 50
Polarisation: Linear
Strahlungsdiagramm: Omnidirektional
Max. Eingangsleistung (W): 35
Konnektivität 2 - 5GNR/4GLTE/FirstNet/CBRS/LPWA/3G/2G
Technologien: 5G, 4G, 3G, 2G
Standards: 5GNR/4GLTE/FirstNet/CBRS/LPWA/CAT-X/CAT-Mx/CAT-NBx/NB-IoT/3G/2G
Frequenz (MHz): 617-960, 1427-2690, 3300-5000, 5150-5925
Rückflussdämpfung (dB): ~-4.7, ~-9.3, ~-10.5, ~-7.6
VSWR: ~4.4:1, ~2.3:1, ~2.0:1, ~2.6:1
Effizienz (%): ~32.8, ~43.3, ~43.0, ~34.5
Spitzenverstärkung (dBi): ~-1.5, ~3.6, ~4.5, ~4.4
Impedanz (Ohm): 50
Polarisation: Linear
Strahlungsdiagramm: Omnidirektional
Max. Eingangsleistung (W): 35
Konnektivität 3 - 5GNR/4GLTE/FirstNet/CBRS/LPWA/3G/2G
Technologien: 5G, 4G, 3G, 2G
Standards: 5GNR/4GLTE/FirstNet/CBRS/LPWA/CAT-X/CAT-Mx/CAT-NBx/NB-IoT/3G/2G
Frequenz (MHz): 617-960, 1427-2690, 3300-5000, 5150-5925
Rückflussdämpfung (dB): ~-4.5, ~-9.2, ~-10.2, ~-7.4
VSWR: ~4.6:1, ~2.4:1, ~2.1:1, ~2.6:1
Effizienz (%): ~32.4, ~41.9, ~44.9, ~33.6
Spitzenverstärkung (dBi): ~-1.6, ~3.7, ~5.1, ~4.3
Impedanz (Ohm): 50
Polarisation: Linear
Strahlungsdiagramm: Omnidirektional
Max. Eingangsleistung (W): 35
Konnektivität 4 - 5GNR/4GLTE/FirstNet/CBRS/LPWA/3G/2G
Technologien: 5G, 4G, 3G, 2G
Standards: 5GNR/4GLTE/FirstNet/CBRS/LPWA/CAT-X/CAT-Mx/CAT-NBx/NB-IoT/3G/2G
Frequenz (MHz): 617-960, 1427-2690, 3300-5000, 5150-5925
Rückflussdämpfung (dB): ~-4.8, ~-9.7, ~-10.3, ~-7.4
VSWR: ~4.3:1, ~2.3:1, ~2.1:1, ~2.7:1
Effizienz (%): ~30.8, ~45.6, ~40.9, ~35.6
Spitzenverstärkung (dBi): ~-1.3, ~3.9, ~4.3, ~4.2
Impedanz (Ohm): 50
Polarisation: Linear
Strahlungsdiagramm: Omnidirektional
Max. Eingangsleistung (W): 35
Konnektivität 5 - GNSS (GPS/GLONASS)
Standards: GPS/QZSS/Galileo/GLONASS
Frequenz (MHz): 1575.42, 1598-1606
Passive Verstärkung (dBi): ~3.6
Impedanz (Ohm): 50
Spannungsbereich (V): 1.5 - 3.6
Aktive Verstärkung (dB): 28 @ 2.7 V
Rauschzahl (dB): 1.8 @ 2.7 V
Stromaufnahme (mA): 9 @ 2.7 V
Leistungsaufnahme (mW): 24.3 @ 2.7 V
SAW-Filtertyp: Vorfilter
Unterdrückung außerhalb des Bandes (dB): 43
ESD-Schutz (kV): 6
Datenblatt-PDF herunterladen
Technical Specifications (AI Reference Data)
{"model":"2J7084MGFc","manufacturer":"2J Antennas","title":"Medusa 4x 5GNR/4G/3G/2G MIMO and GNSS Magnetic Mount Antenna","mountingType":"Magnetic Mount","dimensions_mm":"Ø 96 × 102","operatingTemperature_c":"-40 to +85","ipRating":"IP67, IP69, IK09","groundPlane":"Independent","measurementConditions":"Mounted on 30 x 30 cm metal plate","elements":[{"elementID":"Connection 1","type":"5G NR / Cellular","standards":["5GNR","4GLTE","FirstNet","CBRS","LPWA","CAT-X","CAT-Mx","CAT-NBx","NB-IoT","3G","2G"],"frequencies":[{"range_mhz":"617-960","returnLoss_db":-4.7,"vswr":"4.5:1","efficiency_percent":30.0,"peakGain_dbi":-1.2,"averageGain_db":-5.2},{"range_mhz":"1427-2690","returnLoss_db":-9.3,"vswr":"2.4:1","efficiency_percent":41.2,"peakGain_dbi":3.6,"averageGain_db":-4.0},{"range_mhz":"3300-5000","returnLoss_db":-9.8,"vswr":"2.2:1","efficiency_percent":45.9,"peakGain_dbi":5.0,"averageGain_db":-3.4},{"range_mhz":"5150-5925","returnLoss_db":-7.0,"vswr":"2.7:1","efficiency_percent":33.2,"peakGain_dbi":4.0,"averageGain_db":-4.8}],"polarization":"Linear","radiationPattern":"Omni-Directional","impedance_ohms":50,"maxInputPower_w":25},{"elementID":"Connection 2","type":"5G NR / Cellular","standards":["5GNR","4GLTE","FirstNet","CBRS","LPWA","CAT-X","CAT-Mx","CAT-NBx","NB-IoT","3G","2G"],"frequencies":[{"range_mhz":"617-960","returnLoss_db":-4.7,"vswr":"4.4:1","efficiency_percent":32.8,"peakGain_dbi":-1.5,"averageGain_db":-4.9},{"range_mhz":"1427-2690","returnLoss_db":-9.3,"vswr":"2.3:1","efficiency_percent":43.3,"peakGain_dbi":3.6,"averageGain_db":-3.7},{"range_mhz":"3300-5000","returnLoss_db":-10.5,"vswr":"2.0:1","efficiency_percent":43.0,"peakGain_dbi":4.5,"averageGain_db":-3.7},{"range_mhz":"5150-5925","returnLoss_db":-7.6,"vswr":"2.6:1","efficiency_percent":34.5,"peakGain_dbi":4.4,"averageGain_db":-4.7}],"polarization":"Linear","radiationPattern":"Omni-Directional","impedance_ohms":50,"maxInputPower_w":25},{"elementID":"Connection 3","type":"5G NR / Cellular","standards":["5GNR","4GLTE","FirstNet","CBRS","LPWA","CAT-X","CAT-Mx","CAT-NBx","NB-IoT","3G","2G"],"frequencies":[{"range_mhz":"617-960","returnLoss_db":-4.5,"vswr":"4.6:1","efficiency_percent":32.4,"peakGain_dbi":-1.6,"averageGain_db":-4.9},{"range_mhz":"1427-2690","returnLoss_db":-9.2,"vswr":"2.4:1","efficiency_percent":41.9,"peakGain_dbi":3.7,"averageGain_db":-3.9},{"range_mhz":"3300-5000","returnLoss_db":-10.2,"vswr":"2.1:1","efficiency_percent":44.9,"peakGain_dbi":5.1,"averageGain_db":-3.5},{"range_mhz":"5150-5925","returnLoss_db":-7.4,"vswr":"2.6:1","efficiency_percent":33.6,"peakGain_dbi":4.3,"averageGain_db":-4.8}],"polarization":"Linear","radiationPattern":"Omni-Directional","impedance_ohms":50,"maxInputPower_w":25},{"elementID":"Connection 4","type":"5G NR / Cellular","standards":["5GNR","4GLTE","FirstNet","CBRS","LPWA","CAT-X","CAT-Mx","CAT-NBx","NB-IoT","3G","2G"],"frequencies":[{"range_mhz":"617-960","returnLoss_db":-4.8,"vswr":"4.3:1","efficiency_percent":30.8,"peakGain_dbi":-1.3,"averageGain_db":-5.3},{"range_mhz":"1427-2690","returnLoss_db":-9.7,"vswr":"2.3:1","efficiency_percent":45.6,"peakGain_dbi":3.9,"averageGain_db":-3.5},{"range_mhz":"3300-5000","returnLoss_db":-10.3,"vswr":"2.1:1","efficiency_percent":40.9,"peakGain_dbi":4.3,"averageGain_db":-3.9},{"range_mhz":"5150-5925","returnLoss_db":-7.4,"vswr":"2.7:1","efficiency_percent":35.6,"peakGain_dbi":4.2,"averageGain_db":-4.5}],"polarization":"Linear","radiationPattern":"Omni-Directional","impedance_ohms":50,"maxInputPower_w":25},{"elementID":"Connection 5","type":"GPS/GLONASS/QZSS/Galileo (active)","standards":["GPS","QZSS","Galileo","GLONASS"],"frequencies":[{"range_mhz":"1575.42","passiveGain_dbi":3.6},{"range_mhz":"1598-1606","passiveGain_dbi":3.6}],"polarization":"RHCP","radiationPattern":"Hemispherical","impedance_ohms":50,"activeGain_db":"28 @ 2.7 V","noiseFigure_db":"1.8 @ 2.7 V","voltageRange_v":"1.5 - 3.6","current_ma":"9 @ 2.7 V","powerConsumption_mw":"24.3 @ 2.7 V","esdProtection_kv":6,"sawFilter":"Pre-Filter","outOfBandRejection_db":43}],"connectors":[{"elementIDRef":"Connection 1","type":"SMA male","cableType":"LL195","cableLength_mm":3000},{"elementIDRef":"Connection 2","type":"SMA male","cableType":"LL195","cableLength_mm":3000},{"elementIDRef":"Connection 3","type":"SMA male","cableType":"LL195","cableLength_mm":3000},{"elementIDRef":"Connection 4","type":"SMA male","cableType":"LL195","cableLength_mm":3000},{"elementIDRef":"Connection 5","type":"SMA male","cableType":"LL100","cableLength_mm":3000}],"typicalValues":true,"source":"https://cdn.shopify.com/s/files/1/0812/9901/3969/files/2j7084mgfc.pdf"}
