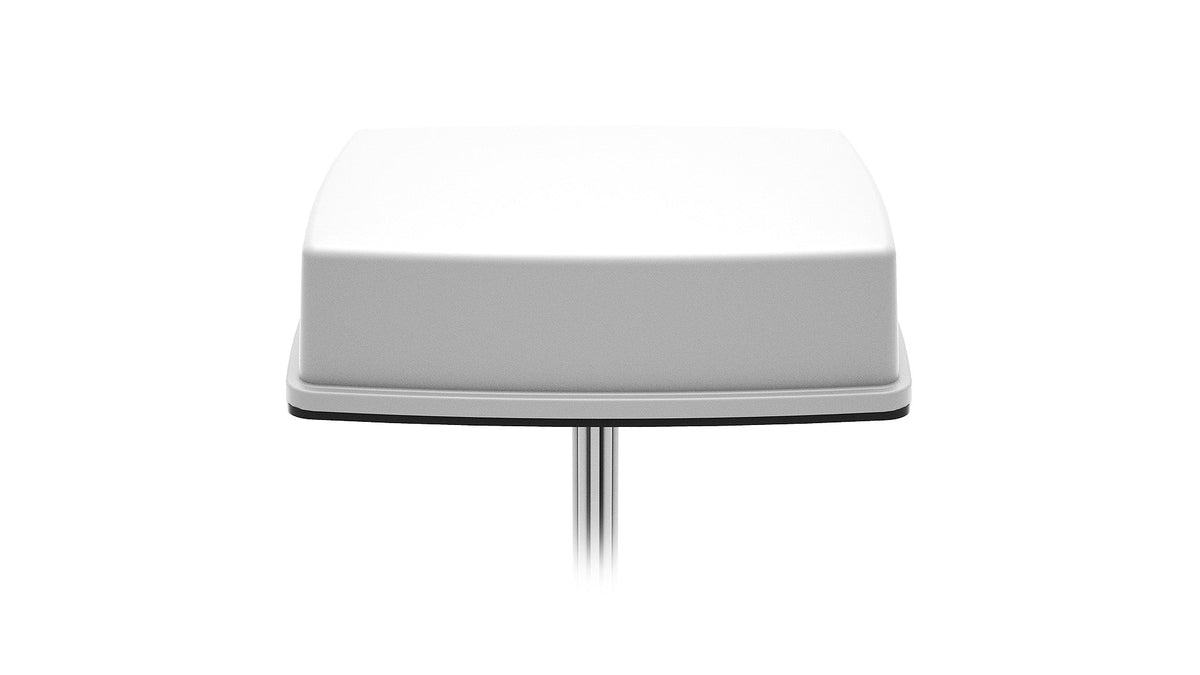

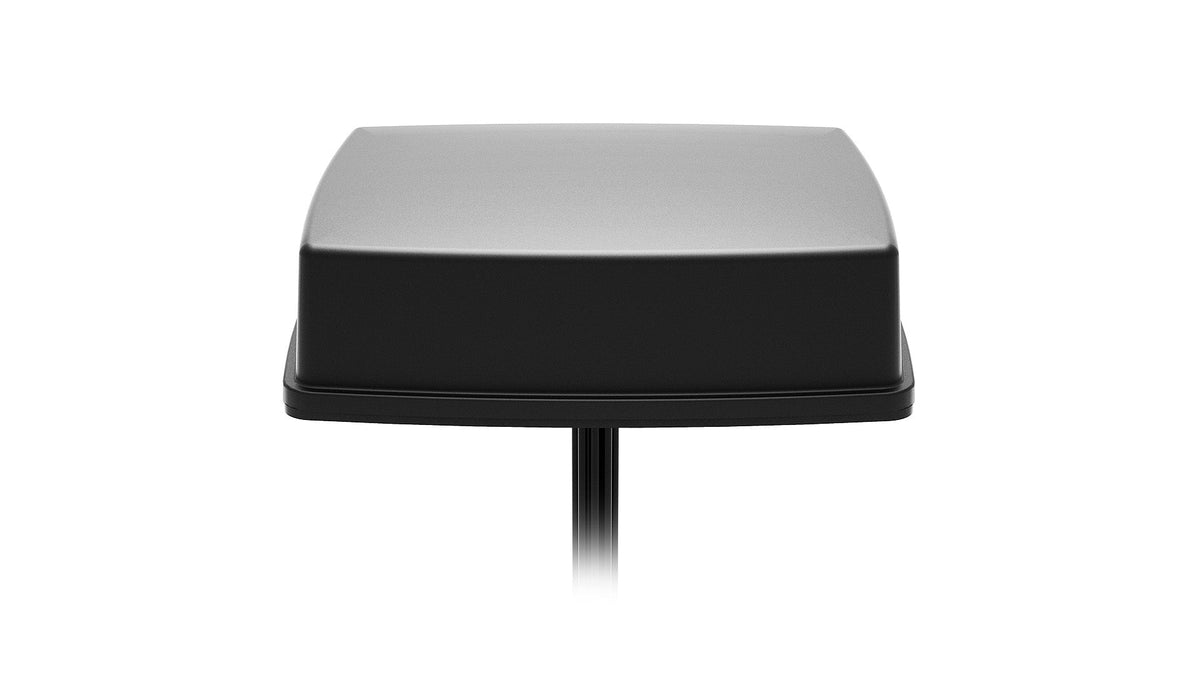

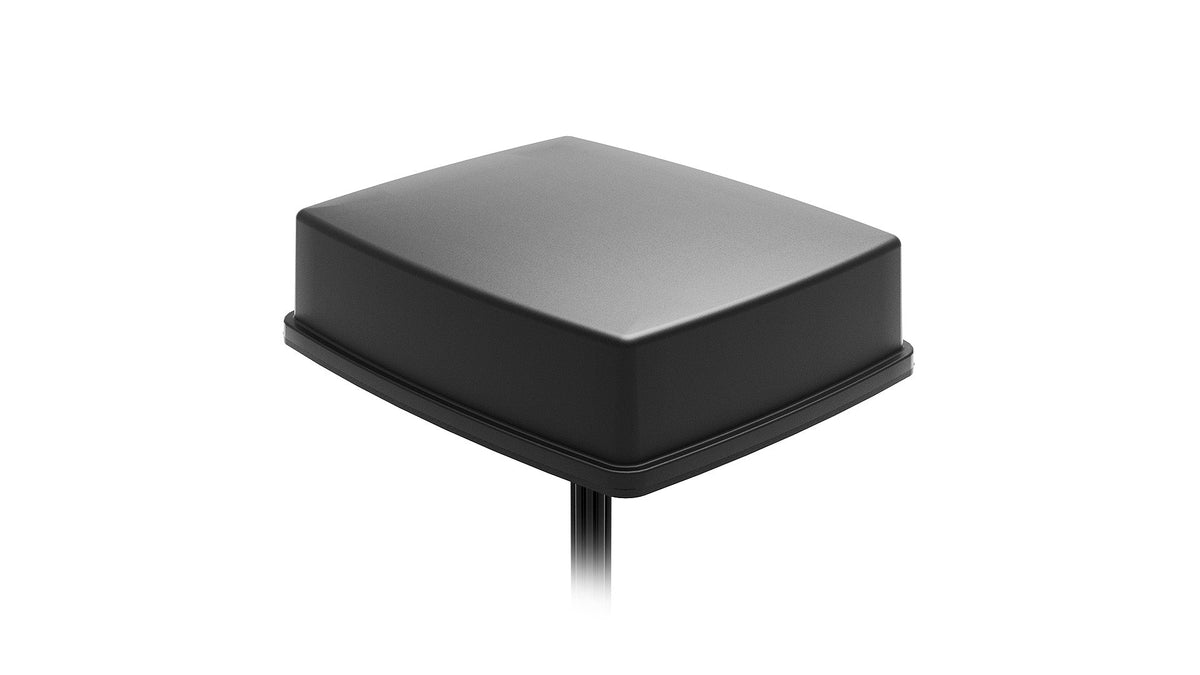

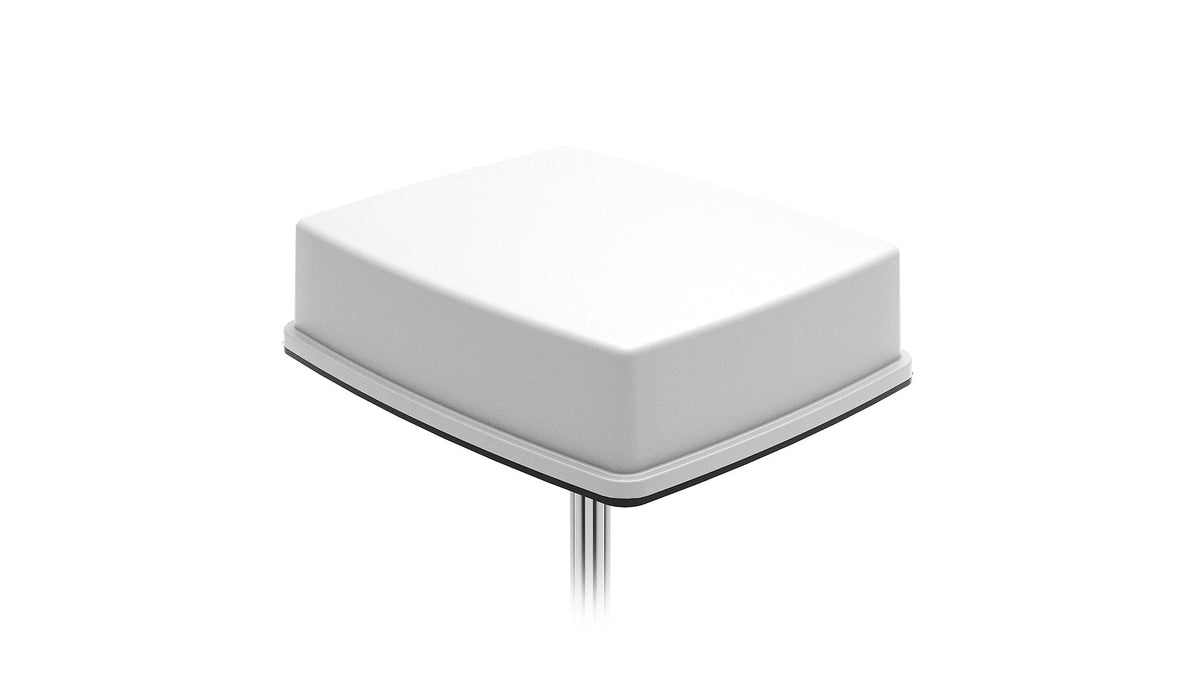

Diese hocheffiziente 7-in-1-Antenne wurde für fortschrittliche 5G-, WLAN-6E/7- und GNSS-Konnektivität entwickelt und liefert zuverlässige Leistung und hohe Betriebssicherheit für anspruchsvolle mobile und industrielle Anwendungen. Ihr ultrabreitbandiges MIMO-Design gewährleistet starke, unterbrechungsfreie Signale über mehrere Technologien hinweg und macht sie ideal für Fahrzeugrouter, öffentliche Sicherheit, Transportwesen und industrielle Automatisierung. Das flache, von der Massefläche unabhängige Gehäuse besitzt die Schutzarten IP67/IP69 und bietet maximale Langlebigkeit sowie Schutz vor Wasser und UV-Strahlung. Die Antenne ist für eine einfache und sichere Schraubbefestigung ausgelegt und unterstützt einen reibungslosen Betrieb unter rauen Umgebungsbedingungen und in Szenarien mit kritischer Kommunikation.
Konnektivitäten
4× 5G NR/4GLTE/FirstNet/CBRS/LPWA/3G/2G
GPS/GLO/QZSS/Galileo/L1
2× 2.4-5.0-6.0GHz MIMO/WLAN 6E/WLAN 7/LPWA/BT/ZigBee/RFID/ISM
Steckverbinder & Kabel
-
Steckertyp: SMA-Male (5GNR & GNSS), RPSMA-Male (WLAN 6E/ISM)
-
Kabellänge: 300 cm
-
Kabeltyp: D302 (5GNR/WLAN-6E ISM), LL100 (GNSS)
Installation / Umgebung

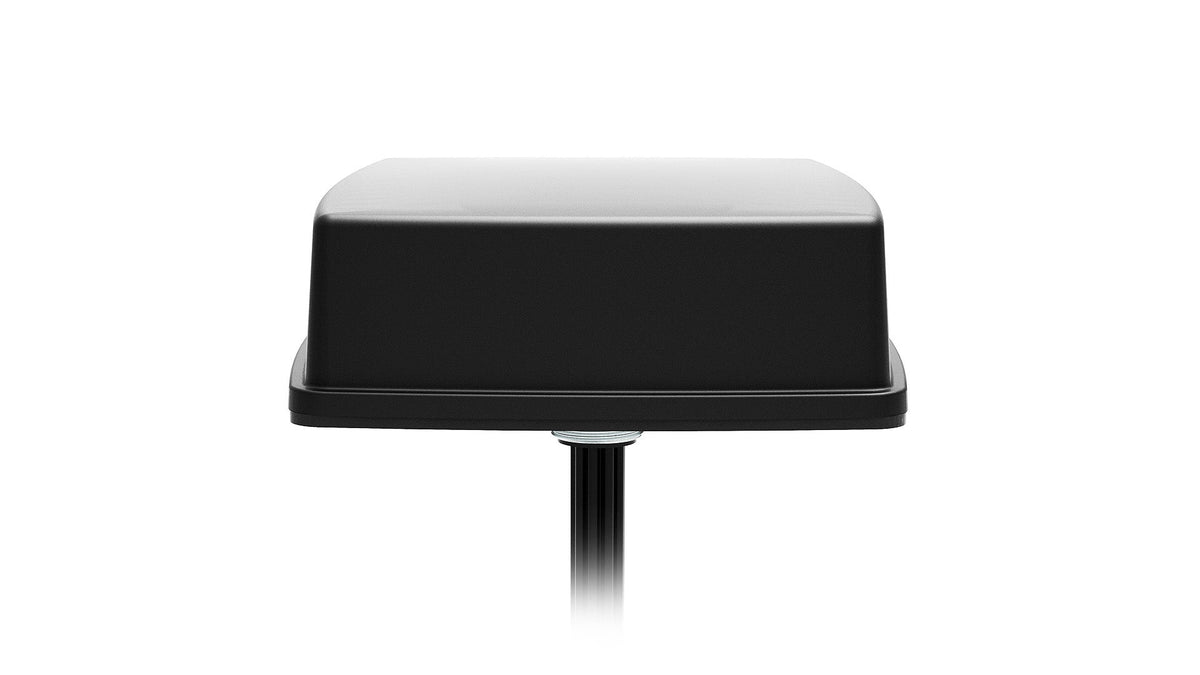

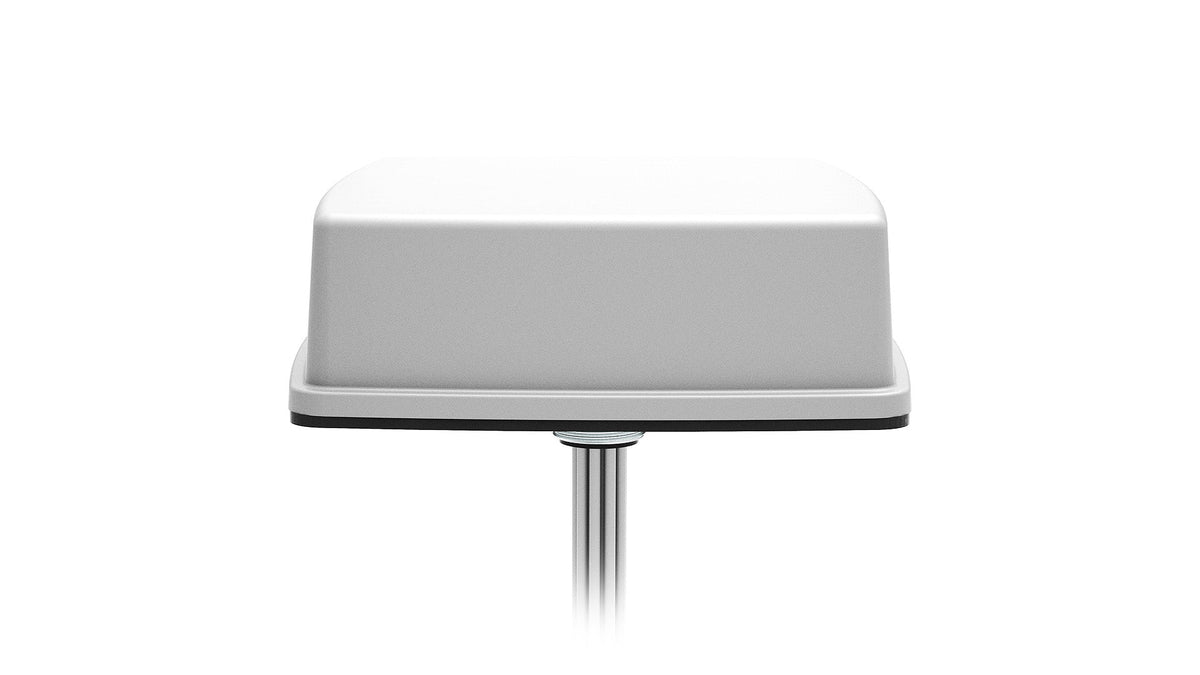

Diese Antenne ist unabhängig von einer Massefläche und lässt sich dank der Schraubbefestigung einfach installieren, wodurch zuverlässige und dauerhafte Installationen an Fahrzeugen oder beliebigen Strukturen gewährleistet werden. Das flache Gehäuse ist nur 53 mm hoch und besteht aus UV-stabilem ASA-Material mit Schutzart IP67/IP69, das Langlebigkeit und ein Höchstmaß an Schutz vor Wasser- und Feuchtigkeitseinwirkung bietet.
Die Anschlüsse der 2J6B86BGFh sind standardmäßig SMA-Male (5GNR & GNSS)/ SMA-Male-RP (WLAN-6E ISM) und werden mit 300 cm langen, verlustarmen D302- (5GNR/WLAN-6E ISM)/ LL100-Kabeln (GNSS) geliefert, können jedoch bei Bedarf angepasst werden. Alle Kabel werden auf einer Seite des Antennengehäuses herausgeführt und sind für optimale Leistung abgestimmt. Wir bieten eine große Auswahl an alternativen Steckverbindern und Kabeln, um alle Anpassungsanforderungen zu erfüllen. Bitte wenden Sie sich an unsere hochqualifizierten Ingenieure, wenn Sie Unterstützung bei der Antennenauswahl oder bei Anpassungsanforderungen benötigen.
Technische Daten
Betriebstemperatur: -40 °C bis +85 °C
Antennentechnologien: Dipol, Patch
Mobilfunktechnologien: 5G
Position: Extern
LPWAN- & IoT-Kommunikation: LPWA, NB-IoT, Cat-M, SigFox, LoRa
Montage: Schraubbefestigung
Satellitennavigation: GNSS
Kurzstrecken-Funkstandards: WLAN, Bluetooth, ZigBee
Typ: Kombination
Abmessungen: 199 × 167 × 53 mm
Konnektivität 1 - 5GNR/4GLTE/FirstNet/CBRS/LPWA/3G/2G
Technologien: 5G, 4G, 3G, 2G
Standards: 5GNR/4GLTE/FirstNet/CBRS/LPWA/CAT-X/CAT-Mx/CAT-NBx/NB-IoT/3G/2G
Frequenz: 617-960, 1427-2690, 3300-5000, 5150-5925 MHz
Rückflussdämpfung (dB): ~-14.2, ~-15.4, ~-18.3, ~-9.2
VSWR: ~1.6:1, ~1.6:1, ~1.3:1, ~2.1:1
Wirkungsgrad (%): ~40.0, ~45.7, ~44.2, ~36.8
Spitzenverstärkung (dBi): ~3.0, ~5.0, ~4.6, ~5.0
Impedanz (Ohm): 50
Polarisation: Linear
Strahlungsdiagramm: Omnidirektional
Max. Eingangsleistung (W): 25
Konnektivität 2 - 5GNR/4GLTE/FirstNet/CBRS/LPWA/3G/2G
Technologien: 5G, 4G, 3G, 2G
Standards: 5GNR/4GLTE/FirstNet/CBRS/LPWA/CAT-X/CAT-Mx/CAT-NBx/NB-IoT/3G/2G
Frequenz: 617-960, 1427-2690, 3300-5000, 5150-5925 MHz
Rückflussdämpfung (dB): ~-12.8, ~-15.3, ~-18.5, ~-10.8
VSWR: ~1.9:1, ~1.6:1, ~1.4:1, ~1.9:1
Wirkungsgrad (%): ~34.1, ~48.2, ~43.7, ~37.8
Spitzenverstärkung (dBi): ~1.1, ~4.8, ~5.1, ~5.0
Impedanz (Ohm): 50
Polarisation: Linear
Strahlungsdiagramm: Omnidirektional
Max. Eingangsleistung (W): 25
Konnektivität 3 - 5GNR/4GLTE/FirstNet/CBRS/LPWA/3G/2G
Technologien: 5G, 4G, 3G, 2G
Standards: 5GNR/4GLTE/FirstNet/CBRS/LPWA/CAT-X/CAT-Mx/CAT-NBx/NB-IoT/3G/2G
Frequenz: 617-960, 1427-2690, 3300-5000, 5150-5925 MHz
Rückflussdämpfung (dB): ~-12.7, ~-14.6, ~-19.7, ~-13.5
VSWR: ~1.9:1, ~1.6:1, ~1.3:1, ~1.6:1
Wirkungsgrad (%): ~36.4, ~45.6, ~41.2, ~38.7
Spitzenverstärkung (dBi): ~3.0, ~4.9, ~4.5, ~4.8
Impedanz (Ohm): 50
Polarisation: Linear
Strahlungsdiagramm: Omnidirektional
Max. Eingangsleistung (W): 25
Konnektivität 4 - 5GNR/4GLTE/FirstNet/CBRS/LPWA/3G/2G
Technologien: 5G, 4G, 3G, 2G
Standards: 5GNR/4GLTE/FirstNet/CBRS/LPWA/CAT-X/CAT-Mx/CAT-NBx/NB-IoT/3G/2G
Frequenz: 617-960, 1427-2690, 3300-5000, 5150-5925 MHz
Rückflussdämpfung (dB): ~-11.8, ~-15.4, ~-20.5, ~-12.8
VSWR: ~1.9:1, ~1.5:1, ~1.3:1, ~1.6:1
Wirkungsgrad (%): ~35.8, ~55.4, ~51.0, ~44.6
Spitzenverstärkung (dBi): ~2.3, ~5.1, ~5.2, ~5.0
Impedanz (Ohm): 50
Polarisation: Linear
Strahlungsdiagramm: Omnidirektional
Max. Eingangsleistung (W): 25
Konnektivität 5 - 2.4 / 5.0 / 6.0 GHz Tri-Band-WIFI 6E / WIFI 7
Standards: WiFi, Bluetooth, ZigBee, ISM, SigFox, LoRa
Frequenz: 2410-2490, 4920-5925, 5925-7125 MHz
VSWR: ~1.5:1, ~1.2:1, ~1.5:1
Wirkungsgrad (%): ~55.6, ~51.9, ~37.5
Spitzenverstärkung (dBi): ~4.3, ~6.7, ~6.3
Impedanz (Ohm): 50
Polarisation: Linear
Max. Eingangsleistung (W): 25
Konnektivität 6 - 2.4 / 5.0 / 6.0 GHz Tri-Band-WIFI 6E / WIFI 7
Standards: WiFi, Bluetooth, ZigBee, ISM, SigFox, LoRa
Frequenz: 2410-2490, 4920-5925, 5925-7125 MHz
VSWR: ~1.5:1, ~1.2:1, ~1.6:1
Wirkungsgrad (%): ~50.0, ~49.7, ~41.1
Spitzenverstärkung (dBi): ~4.1, ~6.8, ~6.1
Impedanz (Ohm): 50
Polarisation: Linear
Max. Eingangsleistung (W): 25
Konnektivität 7 - GPS/GLONASS
Standards: GPS, GLONASS, QZSS, Galileo
Frequenz: 1575.42, 1598-1606 MHz
Passive Verstärkung (dBi): ~4.5, ~5.0
Impedanz (Ohm): 50
Strahlungsdiagramm: Halbkugelförmig
Spannungsbereich (V): 1.5 - 3.6
Aktive Verstärkung (dB): 28 @ 2.7 V
Rauschzahl (dB): 1.8 @ 2.7 V
Stromaufnahme (mA): 9 @ 2.7 V
Leistungsaufnahme (mW): 24.3 @ 2.7 V
SAW-Filtertyp: Vorfilter
Sperrung außerhalb des Bandes (dB): 43
ESD-Schutz (kV): 6
Datenblatt-PDF herunterladen
