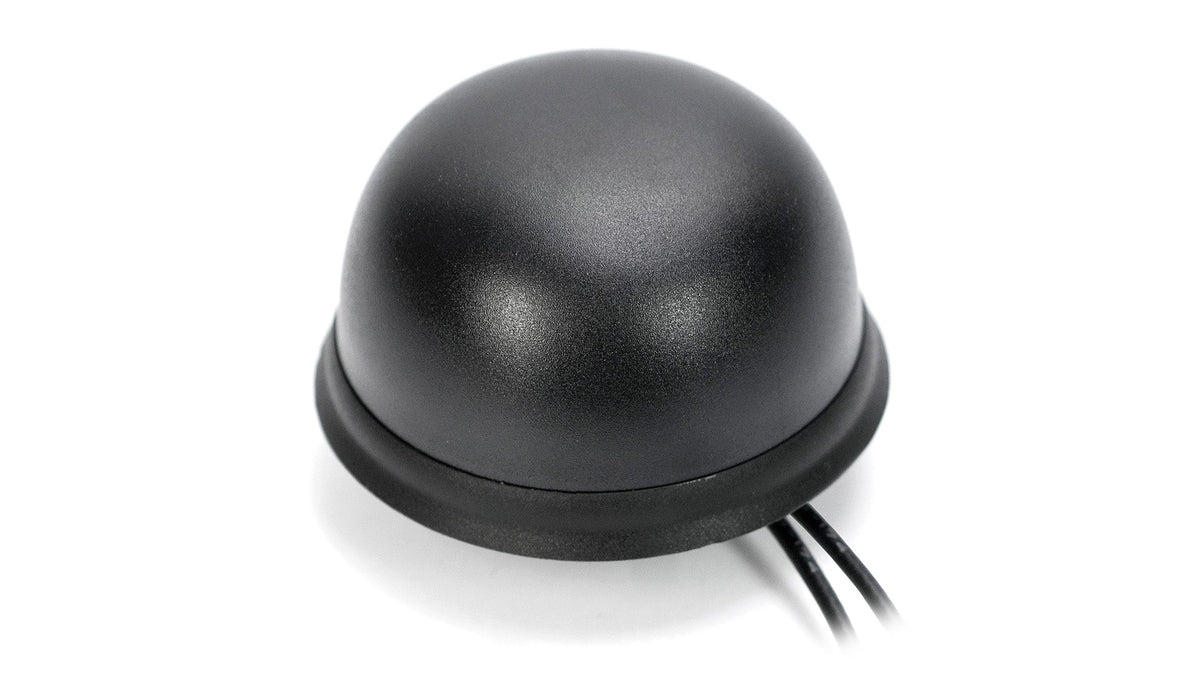

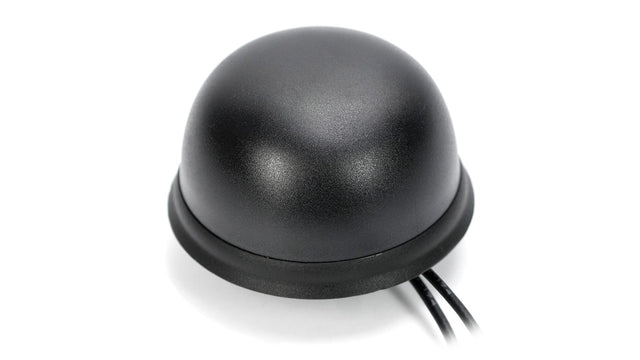

Diese robuste Antenne wurde für zuverlässige drahtlose Konnektivität in anspruchsvollen Umgebungen entwickelt. Die 2-in-1-MIMO-Konfiguration unterstützt die Standards WLAN, ISM, Bluetooth und ZigBee und eignet sich daher ideal für Anwendungen wie Smart Homes, Smart Cities, Unterhaltungssysteme, das Gesundheitswesen, den Transportsektor und die industrielle Automatisierung. Das vom Masseblech abhängige Design gewährleistet eine optimale Leistung, während die verdrehsichere Schraubbefestigung eine sichere Installation ermöglicht. Die Antenne kann hinsichtlich Kabel- und Steckverbinderoptionen individuell angepasst werden und ist mit den Schutzarten IP67 und IP69K für den Einsatz unter rauen Bedingungen geschützt.
Konnektivitäten
2× 2.4-5.0GHz MIMO/WLAN/LPWA/BT/ZigBee/RFID/ISM
Technische Daten
Betriebstemperatur: -40 °C bis +85 °C
Antennentechnologien: Monopol
Position: Extern

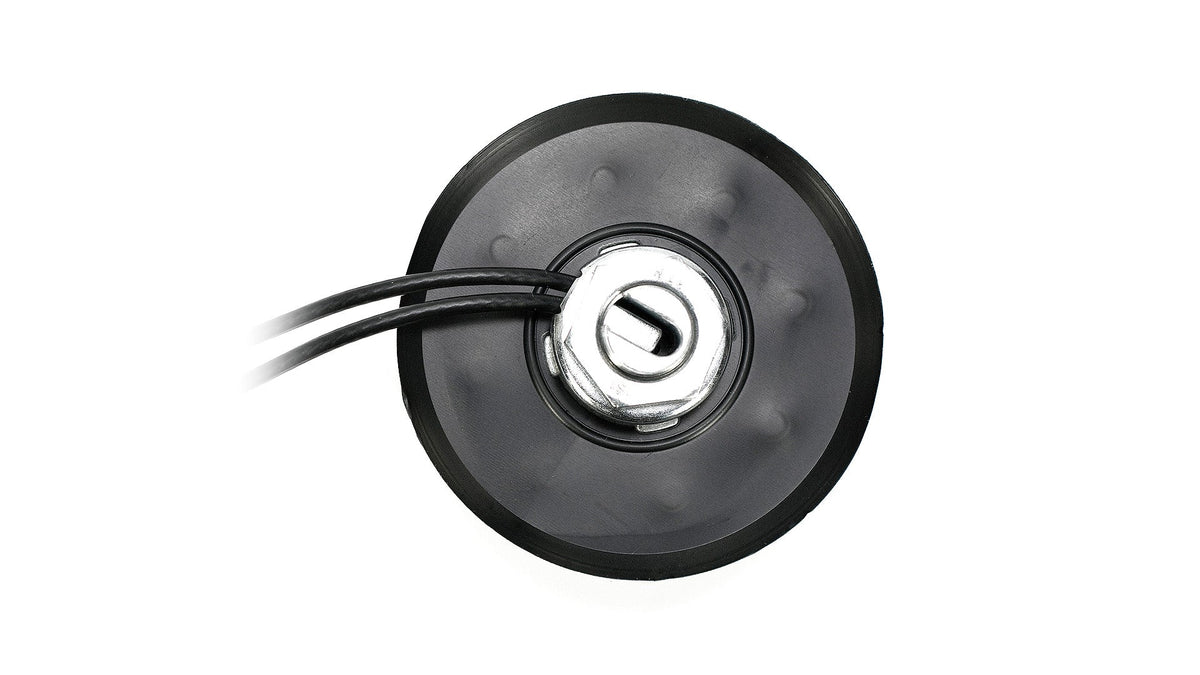

Montage: Schraubbefestigung
Typ: Kombination
Abmessungen: Ø 77.3 × 36.5 mm
Konnektivität 1 - 2.4/5.0 GHz ISM
Standards: WLAN, BT, ZigBee, ISM
Frequenz: 2410-2490, 4920-5925 MHz
VSWR: ~1.7:1, ~1.6:1
Wirkungsgrad (%): ~40.6, ~21.8
Spitzenverstärkung (dBi): ~1.9, ~1.6
Impedanz (Ohm): 50
Polarisation: Linear
Max. Eingangsleistung (W): 25
Konnektivität 2 - 2.4/5.0 GHz ISM
Standards: WLAN, BT, ZigBee, ISM
Frequenz: 2410-2490, 4920-5925 MHz
VSWR: ~1.7:1, ~1.6:1
Wirkungsgrad (%): ~40.9, ~19.5
Spitzenverstärkung (dBi): ~1.8, ~1.3
Impedanz (Ohm): 50
Polarisation: Linear
Max. Eingangsleistung (W): 25
Datenblatt-PDF herunterladen
Technical Specifications (AI Reference Data)
{"model":"2J6702Ba","manufacturer":"2J Antennas","title":"2× WiFi ISM MIMO Ground Plane Dependent Customizable Screw Mount Antenna","mountingType":"Screw Mount","dimensions_mm":"Ø 77.3 × 36.5","operatingTemperature_c":"-40 to +85","ipRating":"IP67, IP69K, IK10","groundPlane":"Dependent","measurementConditions":"Mounted on 30 x 30 cm metal plate, 200 cm D302 cable","elements":[{"elementID":"Connection 1","type":"2.4 / 5.0 GHz Wi-Fi / ISM","standards":["WiFi","BT","ZigBee","ISM"],"frequencies":[{"range_mhz":"2410-2490","returnLoss_db":-12.4,"vswr":"1.7:1","efficiency_percent":40.6,"peakGain_dbi":1.9,"averageGain_db":-3.9},{"range_mhz":"4920-5925","returnLoss_db":-13.4,"vswr":"1.6:1","efficiency_percent":21.8,"peakGain_dbi":1.6,"averageGain_db":-6.7}],"polarization":"Linear","radiationPattern":"Omni-Directional","impedance_ohms":50,"maxInputPower_w":10},{"elementID":"Connection 2","type":"2.4 / 5.0 GHz Wi-Fi / ISM","standards":["WiFi","BT","ZigBee","ISM"],"frequencies":[{"range_mhz":"2410-2490","returnLoss_db":-11.5,"vswr":"1.7:1","efficiency_percent":40.9,"peakGain_dbi":1.8,"averageGain_db":-3.9},{"range_mhz":"4920-5925","returnLoss_db":-13.5,"vswr":"1.6:1","efficiency_percent":19.5,"peakGain_dbi":1.3,"averageGain_db":-7.2}],"polarization":"Linear","radiationPattern":"Omni-Directional","impedance_ohms":50,"maxInputPower_w":10}],"connectors":[{"elementIDRef":"Connection 1","type":"RP-SMA male","cableType":"D302","cableLength_mm":3000},{"elementIDRef":"Connection 2","type":"RP-SMA male","cableType":"D302","cableLength_mm":3000}],"typicalValues":true,"source":"https://cdn.shopify.com/s/files/1/0812/9901/3969/files/2j6702ba.pdf"}
