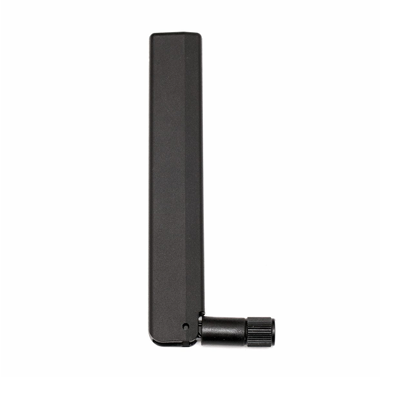

ANT-SI301102799 868/915 MHz ISM Connector Mount

Description
The ANT-SI301102799 is a high-performance 868/915 MHz ISM connector-mount antenna designed for reliable wireless connectivity in LoRa, SIGFOX, ZigBee and other ISM applications. It supports the 863–870 MHz and 902–928 MHz bands, features an omni-directional radiation pattern, linear polarization, 50 Ohm impedance and a hinged SMA male connector for flexible positioning. The antenna is ground plane independent, offers up to 70% efficiency with peak gain up to 3.3 dBi, and is housed in a black ASA radome. With compact dimensions of 135 × 19 × 10 mm and an operating temperature range of -40°C to +85°C, it is well suited for demanding industrial and IoT environments.

Datasheet
