Telit Cinterion SE868SY-SF GNSS Module

Only 2 left
SKU: SE868SYS130R001000
Regular price €7,00 EUR

Let us know your specific requirements or check the availability of this product. We’ll get back to you shortly.

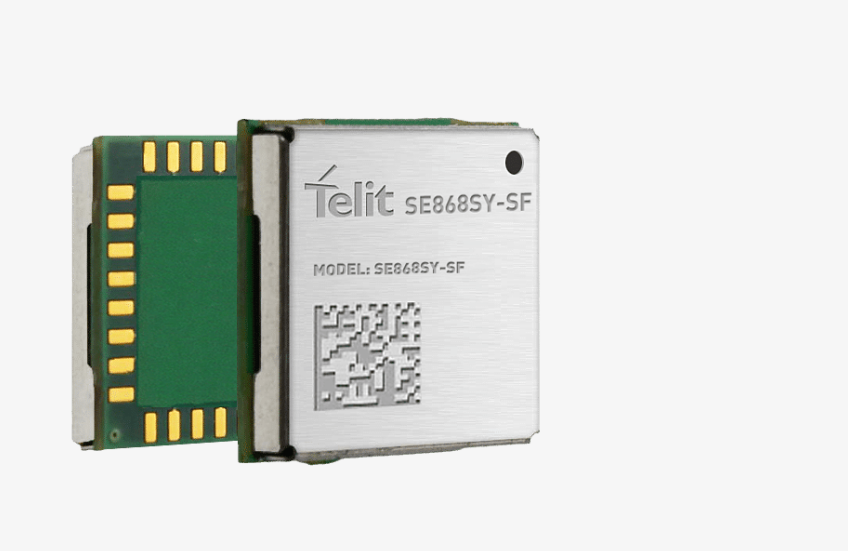

The Telit Cinterion SE868SY-SF is a single-band GNSS module designed for high-performance positioning applications, supporting GPS, Galileo, GLONASS, and BeiDou. Encased in an 11x11 mm package, it is optimized for low power consumption with an integrated LNA for passive antennas. The SE868SY-SF is ideal for fleet management, automotive telematics, and wearables, providing precise location tracking even in challenging environments.

Key Features:

  • Multi-Constellation Support: Tracks up to four GNSS constellations (GPS, Galileo, GLONASS, BeiDou) for enhanced positioning accuracy.
  • Ultra-Low Power Consumption: Efficient power modes extend battery life, with deep sleep consuming only 70 µW.
  • High Sensitivity and Accuracy: Achieves tracking sensitivity of -164 dBm and positional accuracy within 1 meter CEP50.
  • Flexible Interface Options: Includes UART, I2C, and SPI interfaces with 1PPS for precise timing.
  • A-GNSS and SBAS Support: Features ephemeris file injection and Satellite-Based Augmentation Systems (SBAS) for faster time-to-first-fix and improved accuracy.

Applications:
The SE868SY-SF is suited for applications that demand reliable GNSS performance, such as e-mobility solutions, road tolling systems, and smart infrastructure. Its compact form and robust capabilities make it a versatile choice for GNSS-reliant IoT and automotive applications.

Downloads: Datasheet
