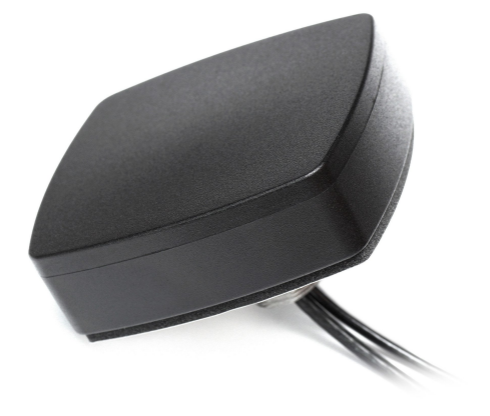

2-in-1 5G MIMO Screw Mount IoT Antenna, IP67/ IP69

Product Overview:

The ANT-L2XR66101 is a 5G MIMO antenna with a screw-mount design. It supports a wide range of frequencies across 5G, 4G, 3G, and 2G networks, with a robust build suited for harsh environments, offering IP67 and IP69 certifications.

Key Features:

• Supports 5G, 4G LTE, 3G, and 2G
• Screw mount with anti-rotation mechanism
• Ground-plane independent
• Customizable cable and connector options
• Dimensions: 80 x 74 x 25.6 mm
• IP67, IP69 certified

Technical Specifications:

• Frequency Ranges:
  • 617-960 MHz
  • 1427-2690 MHz
  • 3300-5000 MHz
  • 5150-5925 MHz
• Impedance: 50 Ohm
• Polarization: Linear
• Max Input Power: 25W
• Connector Type: SMA-Male Standard (others available)
• Cable Length: 300 cm standard (custom lengths available)
• Operating Temperature: -40°C to +85°C
• Certificates: IP67, IP69, RoHS Compliant

Installation Notes:
This antenna is designed for screw mounting and includes an anti-rotation mechanism. Ensure the antenna is securely mounted using M4 screws and tightened to the recommended torque for optimal performance.

Frequently Asked Questions:

Q1: What frequencies does this antenna support?
A1: The antenna supports 5G, 4G, 3G, and 2G frequencies, ranging from 617 MHz to 5925 MHz.

Q2: Is this antenna suitable for outdoor use?
A2: Yes, the antenna is IP67 and IP69 certified, meaning it is fully protected against dust and water, making it ideal for outdoor use in extreme conditions.

Inquire for customization options eg connector, cable length, and bulk quantity.
