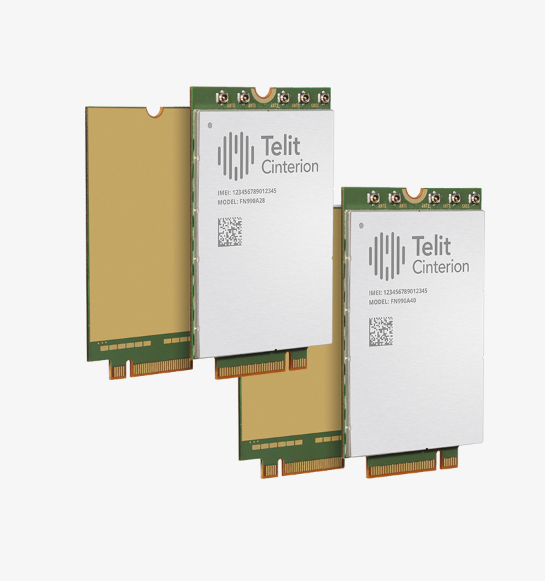

Telit Cinterion FN990A40 5G/LTE Data Card

For ultra high-end performance and bandwidth.

• Networks: 5G, 4G (LTE), 3G
• Positioning: GNSS
• 5G spectrum: Sub-6 GHz
• Regions: North America, EMEA, APAC
• Form factor: M.2 data card

The Telit Cinterion FN990Axx series is a high-performance 5G/LTE data card featuring Qualcomm Snapdragon X65 and X62 modems. Available in FN990A40 and FN990A28 variants, these modules support sub-6 GHz 5G and LTE Cat 20 or Cat 19, enabling ultra-fast connectivity for bandwidth-intensive applications like enterprise routers, industrial gateways, and video surveillance. Designed for global deployments, the FN990Axx supports 3G fallback, GNSS, and multiple MIMO configurations, ensuring reliable and versatile connectivity.

Designed for global use, the FN990A40 and FN990A28 support all scenarios prescribed by 3GPP Release 16 for 5G deployments: non-standalone (NSA) LTE-5G NR dual connectivity (EN-DC), dynamic spectrum sharing (DSS) between LTE and 5G, and full 5G NR standalone (SA) mode. Both cards support all major sub-6 GHz frequency bands.

The FN990A40 is based on the Qualcomm Snapdragon X65 5G modem and targets high-tier needs for maximum performance and bandwidth. The FN990A28, based on the Snapdragon X62, covers mid-tier requirements.

Key Features:

• 5G Sub-6 GHz Support: Operates on FDD and TDD bands, with options for SA and NSA modes, providing global 5G compatibility.
• High Data Rates: Achieves up to 4.9 Gbps (FN990A40) and 3.4 Gbps (FN990A28) in 5G NSA, with 4G LTE speeds up to 2 Gbps.
• Advanced GNSS Integration: Features gpsOne Gen 9 L1 band with dedicated RF for high-accuracy positioning.
• MIMO Support: 4x4 MIMO in key 5G bands and up to 7 carrier aggregation (CA) for optimized data throughput.
• Rugged M.2 Form Factor: Compact 30x52x2.25 mm design, supporting PCIe and USB 3.1 interfaces for flexible deployment.

Applications:
The FN990Axx series is ideal for high-demand applications like fixed wireless access, professional broadcasting, and surveillance, offering robust 5G connectivity and industrial-grade reliability for complex IoT and enterprise deployments.

Downloads: Datasheet
