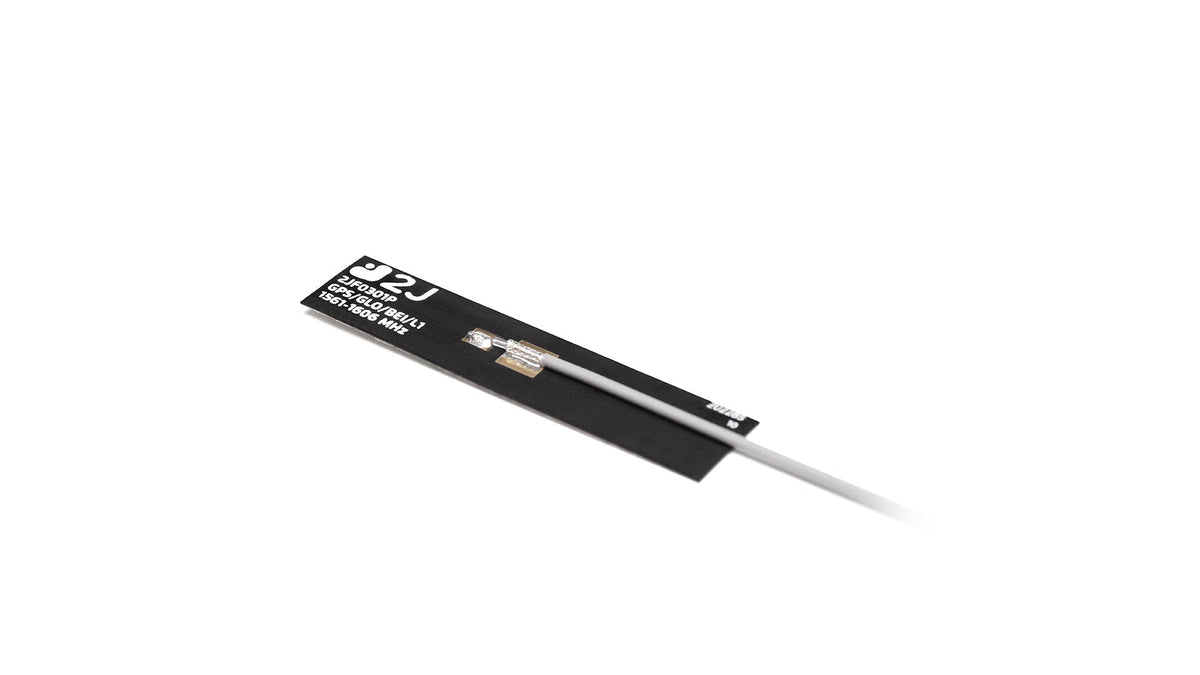

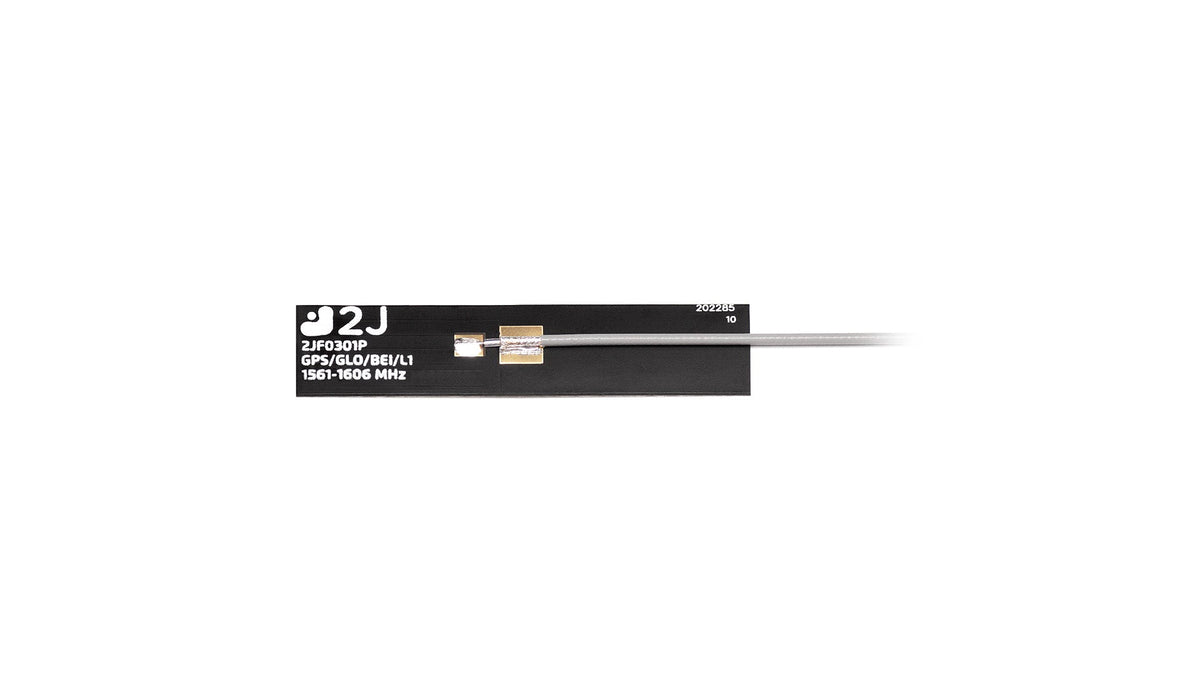

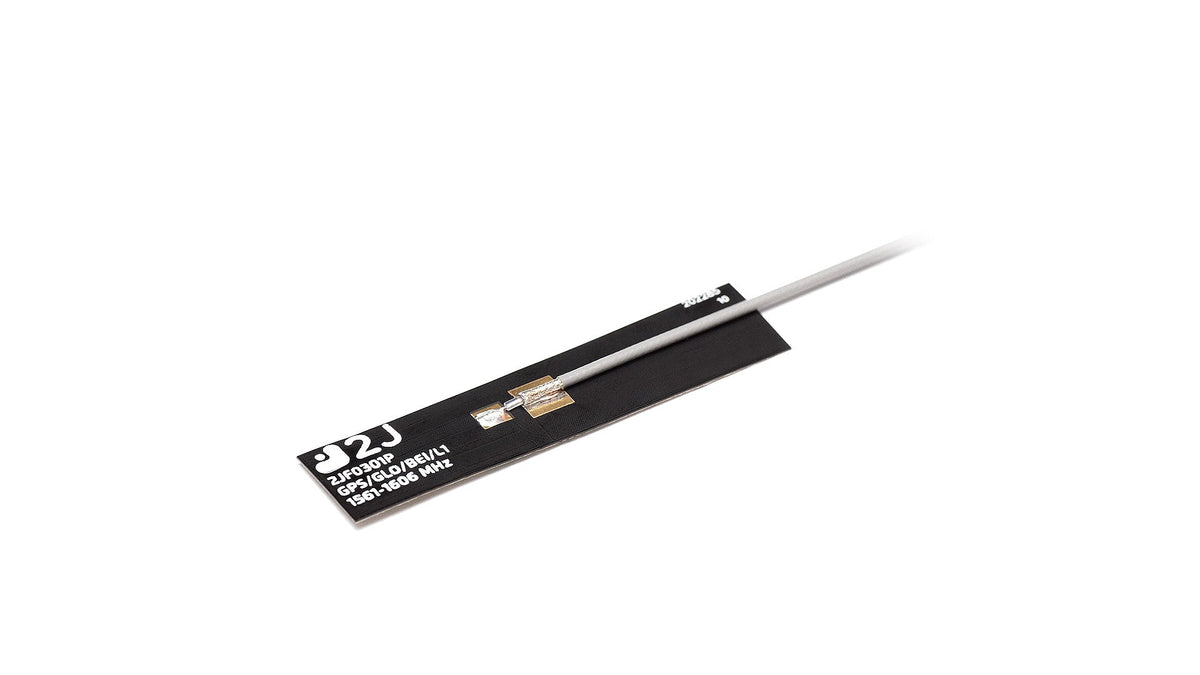

This ultra-thin, flexible adhesive antenna is designed for reliable GNSS signal reception, supporting GPS, GLONASS, BeiDou, QZSS, and Galileo systems. Its ground plane independence and high efficiency make it ideal for embedded applications where space is limited. The self-adhesive backing allows for easy installation on a variety of surfaces, making it suitable for consumer electronics, robotics, drones, asset tracking, and more. The antenna is engineered for cable detuning resistance and offers customizable cable and connector options to fit your specific integration needs.
Connections
GPS/GLO/BEI/QZSS/Galileo/L1
Connector & Cable
-
Connector Type: U.FL
-
Cable Length: 15cm
-
Cable Type: MC137B
Technical Specifications
Operating Temperature: -40 °C to +85 °C
Antenna Technologies: FPC
Location: Internal
Mounting: Adhesive Mount Flexible
Satellite Navigation: GNSS
Type: Single
Dimensions: 55.4 × 12.4 × 0.2 mm
Connection 1 - GNSS
Standards: BeiDou/GPS/QZSS/Galileo/GLONASS
Frequency: 1561.098, 1575.42, 1598-1606 MHz
Passive Gain (dBi): ~3.7, ~3.9, ~4.0
Efficiency (%): ~75.0, ~76.0, ~75.0
Impedance (Ohm): 50
Radiation Pattern: Omni-Directional
Polarization: Linear
Download Datasheet PDF
Technical Specifications (AI Reference Data)
{"model":"2JF0301P","manufacturer":"2J Antennas","title":"GPS/GLONASS/BeiDou/Galileo Flexible Ultra-Thin PCB Adhesive Antenna","mountingType":"Self-Adhesive","dimensions_mm":"55.4 × 12.4 × 0.2","operatingTemperature_c":"-40 to +85","groundPlane":"Independent","measurementConditions":"Mounted on 30 x 30 x 0.25 cm ABS plate, 100 mm 1.37 mm Mini-Coax cable","elements":[{"elementID":"Connection 1","type":"GNSS (passive)","standards":["BeiDou","GPS","QZSS","Galileo","GLONASS"],"frequencies":[{"range_mhz":"1561.098","returnLoss_db":-15.6,"vswr":"1.38:1","efficiency_percent":75.0,"peakGain_dbi":3.7,"averageGain_db":-1.3},{"range_mhz":"1575.42","returnLoss_db":-16.4,"vswr":"1.37:1","efficiency_percent":76.0,"peakGain_dbi":3.9,"averageGain_db":-1.25},{"range_mhz":"1598-1606","returnLoss_db":-12.7,"vswr":"1.57:1","efficiency_percent":75.0,"peakGain_dbi":4.0,"averageGain_db":-1.3}],"polarization":"Linear","radiationPattern":"Omni-Directional","impedance_ohms":50,"maxInputPower_w":25}],"connectors":[{"elementIDRef":"Connection 1","type":"U.FL/IPEX MHF1","cableType":"1.37 mm Micro-Coax","cableLength_mm":150}],"datasheetStandard":{"connector":"U.FL/IPEX MHF1","cableType":"1.37 mm Micro-Coax","cableLength_mm":100,"note":"2J datasheet standard; this product is a configured variant (see connectors)"},"typicalValues":true,"source":"https://cdn.shopify.com/s/files/1/0812/9901/3969/files/2jf0301p.pdf"}
