2J | SKU: 2JE49_3

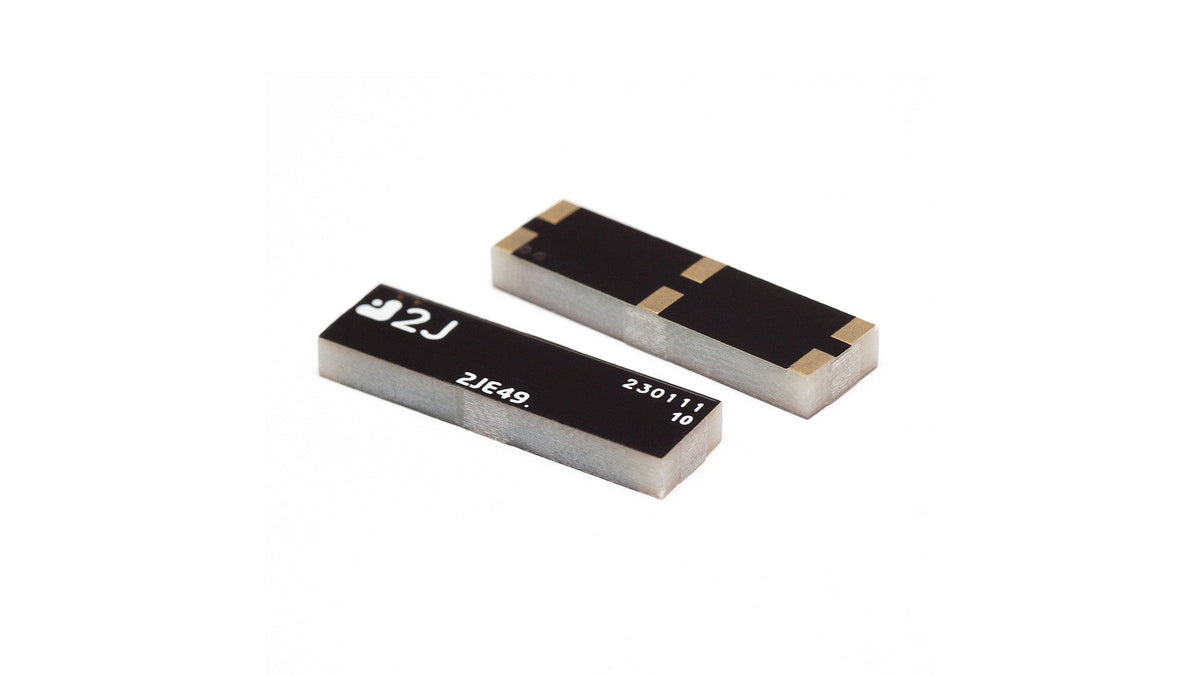

2JE49 ISM Antenna surface mount compact fiberglass

Name: 2JE49 ISM Antenna surface mount compact fiberglass
Brand: 2J
SKU: 2JE49_3
Price: 1.28 EUR
Availability: InStock

€1,28

Unit Price excluding VAT. Shipping calculated at checkout.

Datasheet

PDF Download

Description

This compact surface mount antenna is optimized for 868/915 MHz ISM applications, supporting ZigBee, SigFox, LoRa, and RFID standards. Its fiberglass construction ensures durability and a small footprint, making it ideal for integration into space-constrained devices. The antenna is ground plane dependent and designed for easy integration into embedded systems, smart devices, and IoT solutions across a wide range of industries, including automation, smart home, industrial IoT, and asset tracking.

Connections

868-915MHz/Sigfox/LoRa/LPWA/RFID/ZigBee/ISM

Technical Specifications

Operating Temperature: -40 °C to +85 °C
Mounting: Surface Mount Fiberglass
Type: Single
Dimensions: 26 × 7.6 × 3 mm

Connection 1 - 868/915 MHz ISM

Standards: ZigBee, ISM, SIGFOX, LoRa
Frequency: 863-870, 902-928 MHz
VSWR: ~1.8:1, ~1.5:1
Efficiency (%): ~66.7, ~81.7
Peak Gain (dBi): ~5.0, ~5.8
Impedance (Ohm): 50
Polarisation: Linear
Max. Input Power (W): 25

Download Datasheet PDF

Technical Specifications (AI Reference Data)

{"model":"2JE49","manufacturer":"2J Antennas","title":"868/915 MHz ISM Surface Mount Compact Fiberglass Antenna","mountingType":"Surface Mount","dimensions_mm":"26 × 7.6 × 3","operatingTemperature_c":"-40 to +105","groundPlane":"Dependent","measurementConditions":"Mounted on ground plane of 113 x 40.5 mm","elements":[{"elementID":"Connection 1","type":"868/915 MHz ISM","standards":["ZigBee","ISM","SigFox","LoRa"],"frequencies":[{"range_mhz":"863-870","returnLoss_db":-10.6,"vswr":"1.8:1","efficiency_percent":66.7,"peakGain_dbi":5.0,"averageGain_db":-1.8},{"range_mhz":"902-928","returnLoss_db":-14.1,"vswr":"1.5:1","efficiency_percent":81.7,"peakGain_dbi":5.8,"averageGain_db":-0.9}],"polarization":"Linear","radiationPattern":"Omni-Directional","impedance_ohms":50,"maxInputPower_w":25}],"typicalValues":true,"source":"https://cdn.shopify.com/s/files/1/0812/9901/3969/files/2je49.pdf"}
