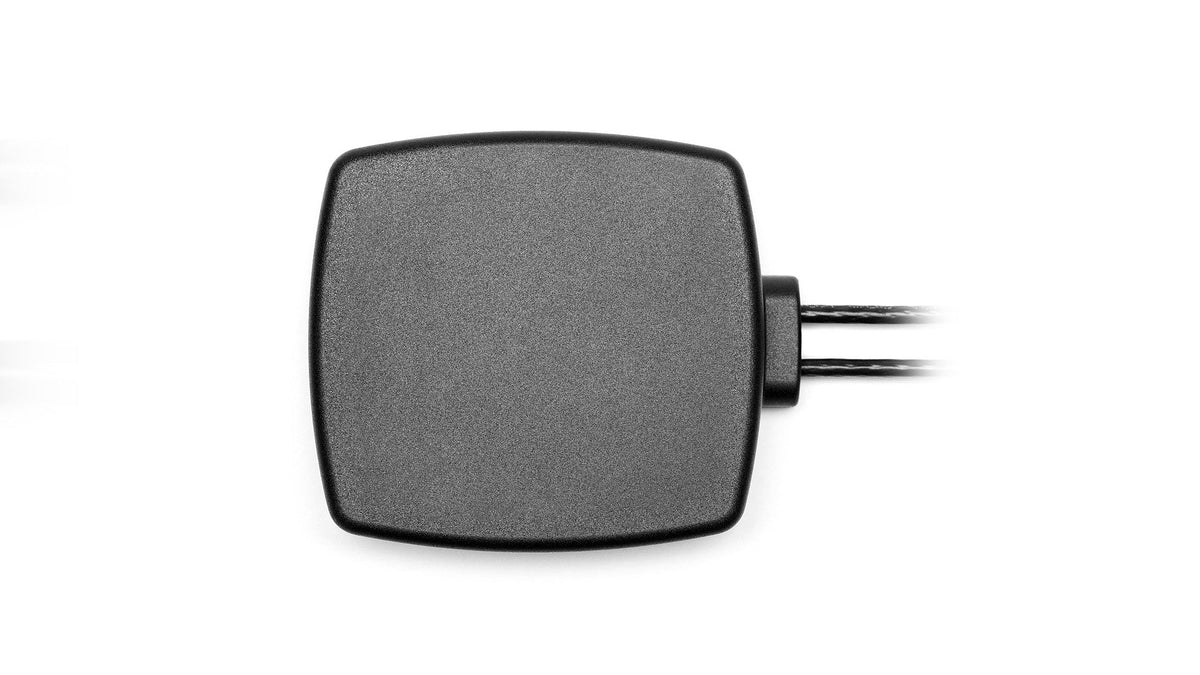

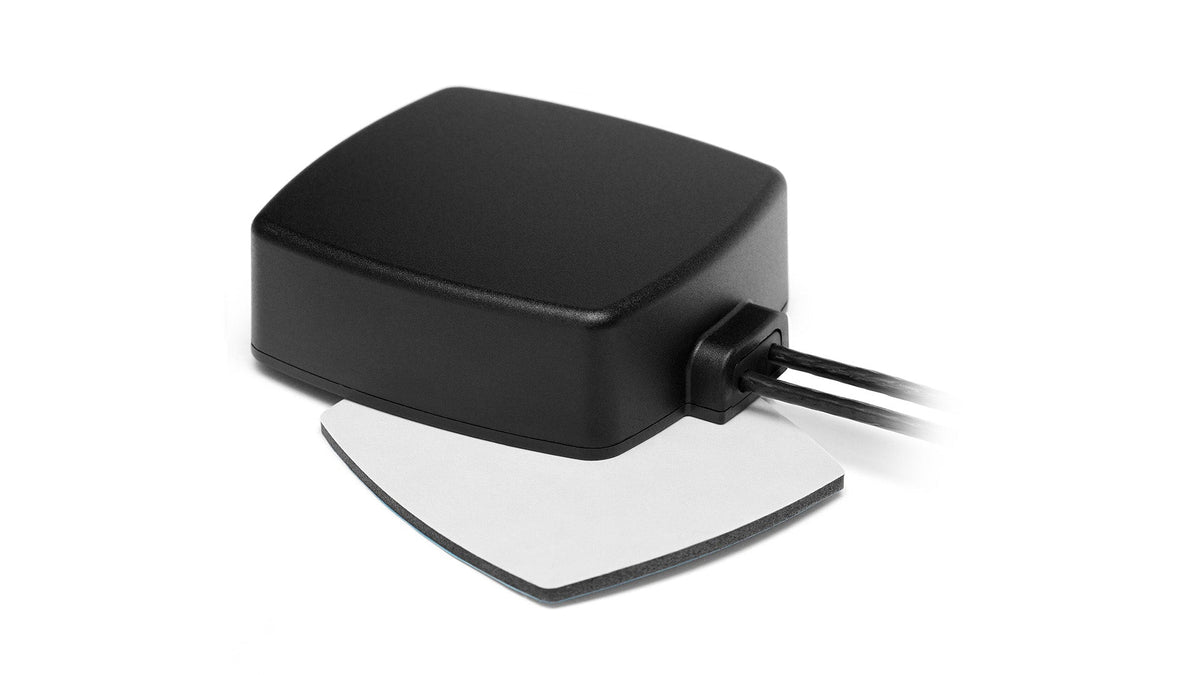

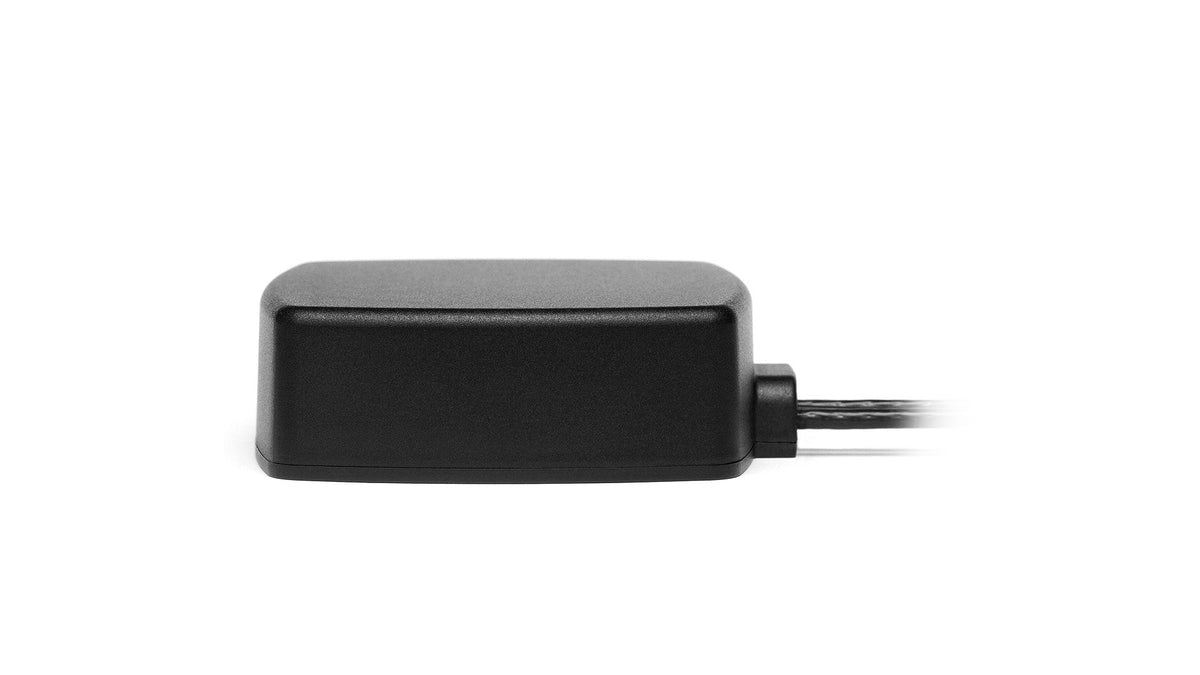

2J6983MPa 5G, 4G/LTE, 3G, 2G MIMO magnetic/adhesive mount Antenna SMA-M 300cm IP67/IP69

Name: 2J6983MPa 5G, 4G/LTE, 3G, 2G MIMO magnetic/adhesive mount Antenna SMA-M 300cm IP67/IP69
Brand: 2J
SKU: 2J6983MPa
Price: 30.3 EUR
Availability: InStock

€30,30

Unit Price excluding VAT. Shipping calculated at checkout.

Datasheet

PDF Download

Description

This low-profile antenna delivers high-performance connectivity for 5G, 4G/LTE, 3G, and 2G networks, supporting MIMO operation for enhanced data throughput and reliability. Its ground plane independence and robust IP67/IP69-rated housing make it ideal for demanding outdoor and automotive applications. The magnetic and adhesive mounting options allow for flexible installation on both metal and non-metal surfaces, making it suitable for terminals, routers, industrial IoT, asset tracking, and more. The omni-directional radiation pattern ensures consistent signal strength and coverage, while the compact design enables easy integration into a wide range of environments.

Connections

2× 5G NR/4GLTE/FirstNet/CBRS/LPWA/3G/2G

Connector & Cable

Connector Type: SMA-Male
Cable Length: 300cm
Cable Type: D302 Coaxial

Installation / Environmental

The housing is IP67 and IP69 certified and manufactured from black or white ABS / UV stable material offering exceptional durability at a low cost for maximum protection from extreme outdoor applications. It comes with standard SMA-Male connector and 300 cm long D302 Coaxial cable, a popular choice for automotive applications due to its environmental properties. A wide range of alternative connectors and cables are available for customization. With a compact design (89 × 76 × 27/30 mm), ground plane independence and high-grade magnetic/adhesive mounting allow for easy installation on metal or non-metal surfaces. All products are manufactured without hazardous materials and are fully REACH and RoHS compliant.

Technical Specifications

Operating Temperature: -40 °C to +85 °C
Antenna Technologies: Dipole
Cellular Technologies: 5G, 4G, 3G, 2G
Location: External
LPWAN & IoT Communication: LPWA, NB-IoT, Cat-M
Mounting: Adhesive Mount, Magnetic Mount, Magnetic/Adhesive Mount
Type: Combination
Dimensions: 89 × 76 × 27/30 mm

Connection 1 - 5GNR/4GLTE/FirstNet/CBRS/LPWA/3G/2G

Technologies: 5G, 4G, 3G, 2G
Standards: 5GNR/4GLTE/FirstNet/CBRS/LPWA/CAT-X/CAT-Mx/CAT-NBx/NB-IoT/3G/2G
Frequency: 617-960, 1427-2690, 3300-5000, 5150-5925 MHz
Return Loss (dB): ~-7.0, ~-11.2, ~-7.1, ~-6.4
VSWR: ~3.1:1, ~2.1:1, ~3.1:1, ~3.0:1
Efficiency (%): ~50.2, ~56.3, ~30.4, ~25.1
Peak Gain (dBi): ~2.1, ~6.3, ~3.7, ~2.8
Impedance (Ohm): 50
Polarisation: Linear
Radiation Pattern: Omni-Directional
Max. Input Power (W): 35

Connection 2 - 5GNR/4GLTE/FirstNet/CBRS/LPWA/3G/2G

Technologies: 5G, 4G, 3G, 2G
Standards: 5GNR/4GLTE/FirstNet/CBRS/LPWA/CAT-X/CAT-Mx/CAT-NBx/NB-IoT/3G/2G
Frequency: 617-960, 1427-2690, 3300-5000, 5150-5925 MHz
Return Loss (dB): ~-7.3, ~-10.8, ~-7.6, ~-8.4
VSWR: ~3.1:1, ~2.1:1, ~2.9:1, ~2.3:1
Efficiency (%): ~50.9, ~58.7, ~38.0, ~36.7
Peak Gain (dBi): ~1.6, ~6.3, ~5.1, ~4.4
Impedance (Ohm): 50
Polarisation: Linear
Radiation Pattern: Omni-Directional
Max. Input Power (W): 25

Download Datasheet PDF

Technical Specifications (AI Reference Data)

{"model":"2J6983MPa","manufacturer":"2J Antennas","title":"5GNR MIMO Low Profile Magnetic Adhesive Mount Antenna","mountingType":"Magnetic/Adhesive Mount","dimensions_mm":"89 × 76 × 27/30","operatingTemperature_c":"-40 to +85","ipRating":"IP67, IP69","groundPlane":"Independent","measurementConditions":"Mounted on 30 x 30 cm metal plate, 100 cm D302 cable","elements":[{"elementID":"Connection 1","type":"5G NR / Cellular","standards":["5GNR","4GLTE","FirstNet","CBRS","LPWA","CAT-X","CAT-Mx","CAT-NBx","NB-IoT","3G","2G"],"frequencies":[{"range_mhz":"617-960","returnLoss_db":-7.0,"vswr":"3.1:1","efficiency_percent":50.2,"peakGain_dbi":2.1,"averageGain_db":-3.3},{"range_mhz":"1427-2690","returnLoss_db":-11.2,"vswr":"2.1:1","efficiency_percent":56.3,"peakGain_dbi":6.3,"averageGain_db":-2.5},{"range_mhz":"3300-5000","returnLoss_db":-7.1,"vswr":"3.1:1","efficiency_percent":30.4,"peakGain_dbi":3.7,"averageGain_db":-5.8},{"range_mhz":"5150-5925","returnLoss_db":-6.4,"vswr":"3.0:1","efficiency_percent":25.1,"peakGain_dbi":2.8,"averageGain_db":-6.1}],"polarization":"Linear","radiationPattern":"Omni-Directional","impedance_ohms":50,"maxInputPower_w":35},{"elementID":"Connection 2","type":"5G NR / Cellular","standards":["5GNR","4GLTE","FirstNet","CBRS","LPWA","CAT-X","CAT-Mx","CAT-NBx","NB-IoT","3G","2G"],"frequencies":[{"range_mhz":"617-960","returnLoss_db":-7.3,"vswr":"3.1:1","efficiency_percent":50.9,"peakGain_dbi":1.6,"averageGain_db":-3.2},{"range_mhz":"1427-2690","returnLoss_db":-10.8,"vswr":"2.1:1","efficiency_percent":58.7,"peakGain_dbi":6.3,"averageGain_db":-2.3},{"range_mhz":"3300-5000","returnLoss_db":-7.6,"vswr":"2.9:1","efficiency_percent":38.0,"peakGain_dbi":5.1,"averageGain_db":-4.4},{"range_mhz":"5150-5925","returnLoss_db":-8.4,"vswr":"2.3:1","efficiency_percent":36.7,"peakGain_dbi":4.4,"averageGain_db":-4.4}],"polarization":"Linear","radiationPattern":"Omni-Directional","impedance_ohms":50,"maxInputPower_w":25}],"connectors":[{"elementIDRef":"Connection 1","type":"SMA male","cableType":"D302","cableLength_mm":3000},{"elementIDRef":"Connection 2","type":"SMA male","cableType":"D302","cableLength_mm":3000}],"typicalValues":true,"source":"https://cdn.shopify.com/s/files/1/0812/9901/3969/files/2j6983mpa.pdf"}
