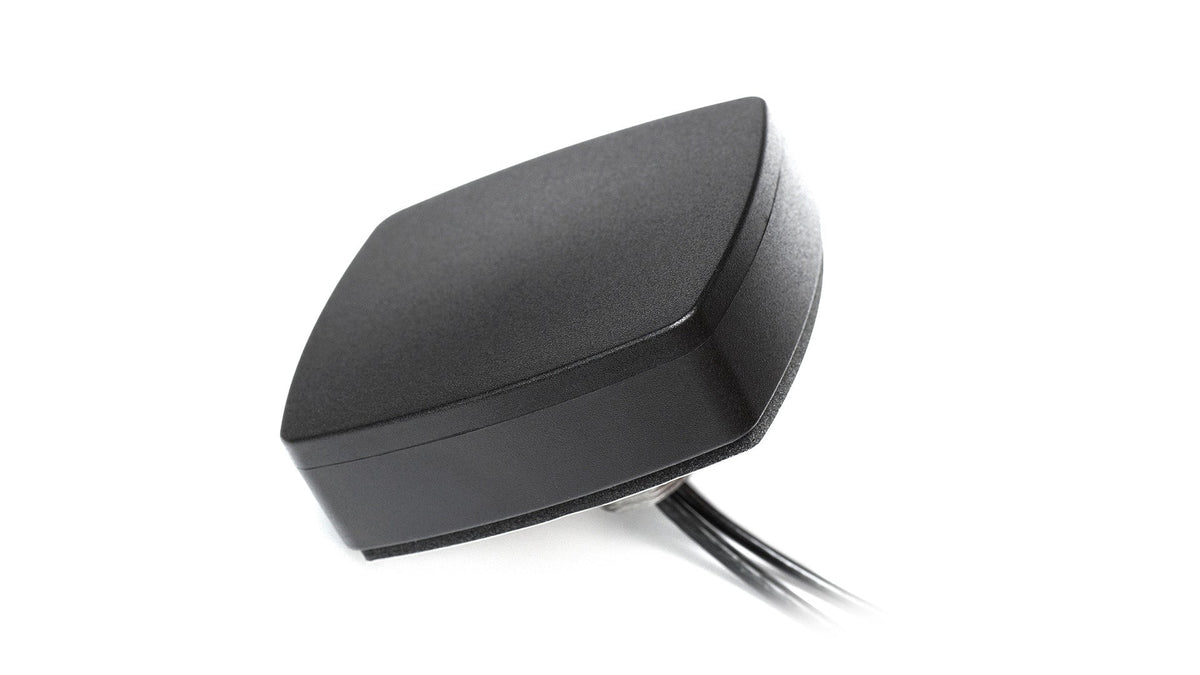

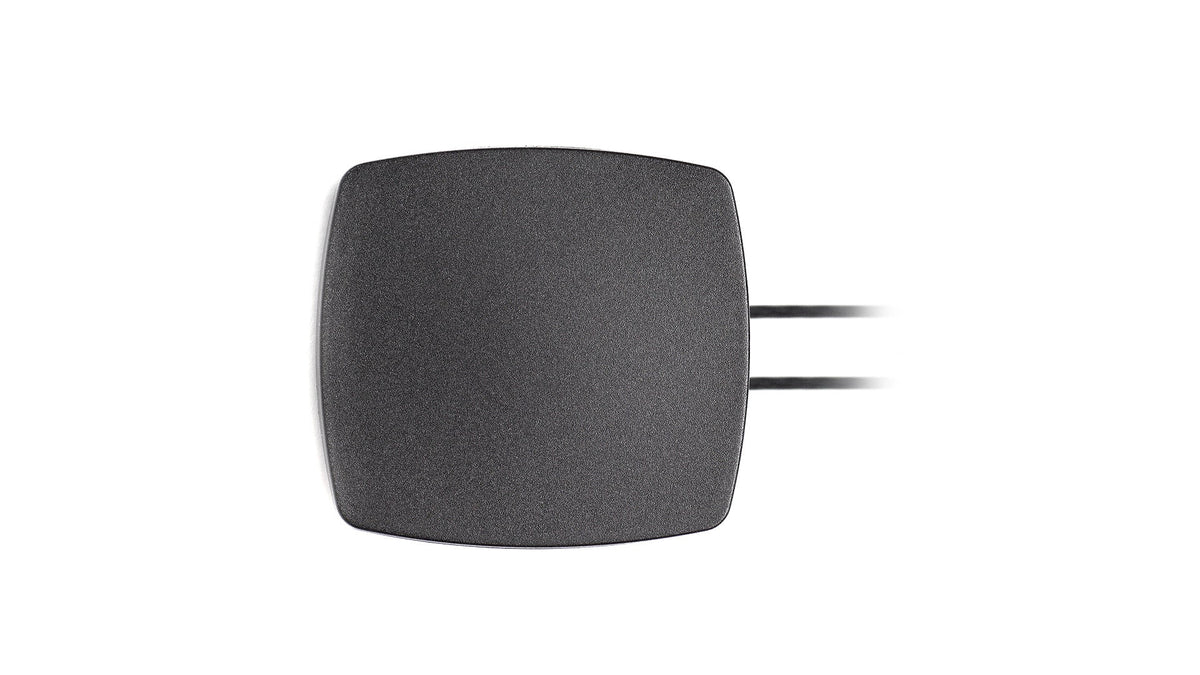

2J6924Ba 4G/LTE, 3G, 2G screw mount Antenna MIMO SMA-M 300cm IP67/IP69

Name: 2J6924Ba 4G/LTE, 3G, 2G screw mount Antenna MIMO SMA-M 300cm IP67/IP69
Brand: 2J
SKU: 2J6924BA-360D302-C899GRST C899GRST
Price: 21.14 EUR
Availability: InStock

€21,14

Unit Price excluding VAT. Shipping calculated at checkout.

Datasheet

PDF Download

Description

This low-profile antenna is engineered for demanding cellular applications, delivering high efficiency and peak gain across all supported bands. Its MIMO design enables simultaneous transmission and reception of multiple data signals, ensuring robust and stable connectivity for routers, gateways, fleet management, telematics, and other cellular devices. The omni-directional radiation pattern provides consistent coverage, while the rugged ABS housing with IP67/IP69 ratings ensures durability in both indoor and outdoor environments. Ideal for applications requiring reliable signal enhancement in challenging conditions.

Connections

2× 4G LTE MIMO/FirstNet/LPWA/NB-IoT/Cat-X-Mx-NBx/3G/2G

Connector & Cable

Connector Type: SMA-Male
Cable Length: 300cm
Cable Type: D302

Installation / Environmental

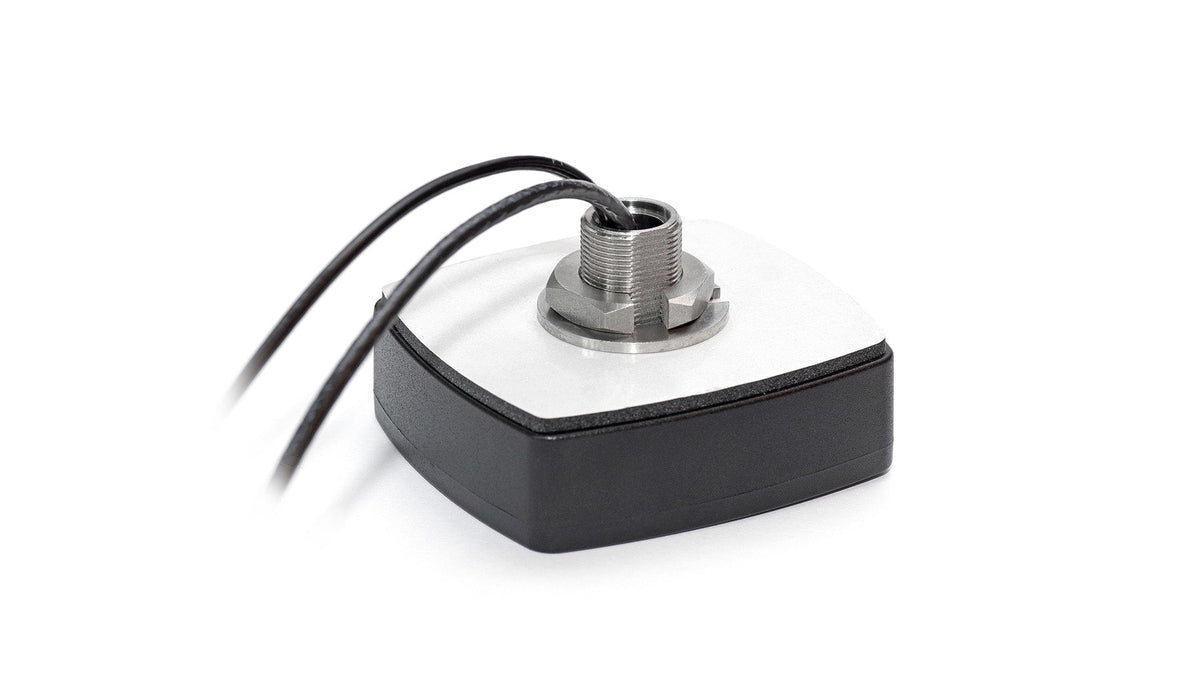

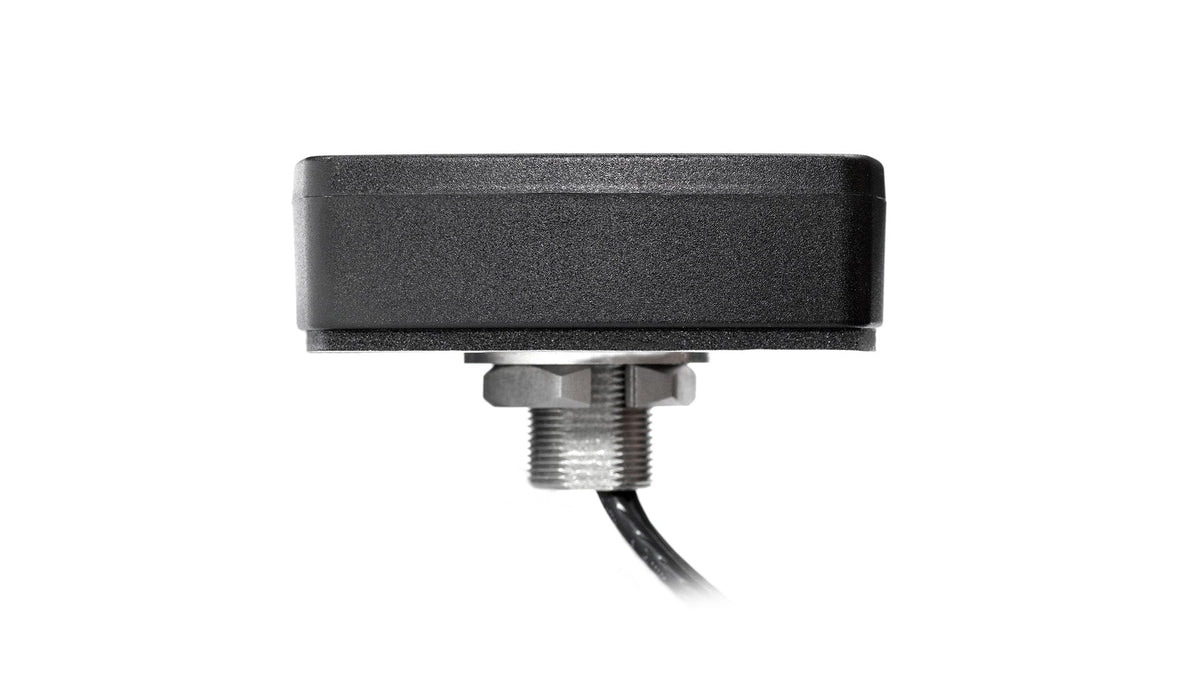

This ground plane independent antenna can be installed on any free space via the single screw mount and an anti-rotation mechanism keeping it secure to the surface area. The housing is manufactured with IP67/IP69 rated ABS UV stable material resisting dust, sand, and water in addition offers durability for long term usage in outdoor or indoor applications. Both cables come with a standard SMA-male connector with 300cm long D302 cable that is tuned for maximum antenna performance. However, we have a large variety of alternative connectors and cables that can be customized for any specific application needs. Please contact one of our experts for more information or assistance with any antenna selection needs.

Technical Specifications

Operating Temperature: -40 °C to +85 °C
Antenna Technologies: Dipole
Cellular Technologies: 4G/LTE, 3G, 2G
Location: External
LPWAN & IoT Communication: LPWA, NB-IoT
Mounting: Screw Mount
Type: Combination
Dimensions: 80 × 74 × 25.6 mm

Connection 1 - Cellular/4G LTE

Standards: 2G, 3G, 4G
Frequency: 698-960, 1710-2170, 2500-2700 MHz
VSWR: ~2.2:1, ~2.2:1, ~1.3:1
Efficiency (%): ~40.1, ~38.1, ~48.1
Peak Gain (dBi): ~3.5, ~4.0, ~6.1
Impedance (Ohm): 50
Polarisation: Linear
Max. Input Power (W): 25

Connection 2 - Cellular/4G LTE

Standards: 2G, 3G, 4G
Frequency: 698-960, 1710-2170, 2500-2700 MHz
VSWR: ~2.3:1, ~2.3:1, ~1.3:1
Efficiency (%): ~45.8, ~38.0, ~47.0
Peak Gain (dBi): ~3.9, ~4.1, ~6.1
Impedance (Ohm): 50
Polarisation: Linear
Max. Input Power (W): 25

Download Datasheet PDF

Technical Specifications (AI Reference Data)

{"model":"2J6924Ba","manufacturer":"2J Antennas","title":"Phoenix Low Profile Cellular 4G LTE/3G/2G MIMO Screw Mount Antenna","mountingType":"Screw Mount","dimensions_mm":"80 × 74 × 25.6","operatingTemperature_c":"-40 to +85","ipRating":"IP67, IP69","groundPlane":"Independent","measurementConditions":"Mounted on 30 x 30 x 0.25 cm metal plate, 200 cm D302 cable","elements":[{"elementID":"Connection 1","type":"Cellular / LTE","standards":["2G","3G","4G"],"frequencies":[{"range_mhz":"698-960","returnLoss_db":-11.1,"vswr":"2.2:1","efficiency_percent":40.1,"peakGain_dbi":3.5,"averageGain_db":-4.0},{"range_mhz":"1710-2170","returnLoss_db":-9.0,"vswr":"2.2:1","efficiency_percent":38.1,"peakGain_dbi":4.0,"averageGain_db":-4.6},{"range_mhz":"2500-2700","returnLoss_db":-19.7,"vswr":"1.3:1","efficiency_percent":48.1,"peakGain_dbi":6.1,"averageGain_db":-3.2}],"polarization":"Linear","radiationPattern":"Omni-Directional","impedance_ohms":50,"maxInputPower_w":25},{"elementID":"Connection 2","type":"Cellular / LTE","standards":["2G","3G","4G"],"frequencies":[{"range_mhz":"698-960","returnLoss_db":-9.7,"vswr":"2.3:1","efficiency_percent":45.8,"peakGain_dbi":3.9,"averageGain_db":-3.5},{"range_mhz":"1710-2170","returnLoss_db":-8.2,"vswr":"2.3:1","efficiency_percent":38.0,"peakGain_dbi":4.1,"averageGain_db":-4.6},{"range_mhz":"2500-2700","returnLoss_db":-20.5,"vswr":"1.3:1","efficiency_percent":47.0,"peakGain_dbi":6.1,"averageGain_db":-3.3}],"polarization":"Linear","radiationPattern":"Omni-Directional","impedance_ohms":50,"maxInputPower_w":25}],"connectors":[{"elementIDRef":"Connection 1","type":"SMA male","cableType":"D302","cableLength_mm":3600},{"elementIDRef":"Connection 2","type":"SMA male","cableType":"D302","cableLength_mm":3600}],"datasheetStandard":{"connector":"SMA male","cableType":"D302","cableLength_mm":3000,"note":"2J datasheet standard; this product is a configured variant (see connectors)"},"typicalValues":true,"source":"https://cdn.shopify.com/s/files/1/0812/9901/3969/files/2j6924ba.pdf"}
